TSURUMI

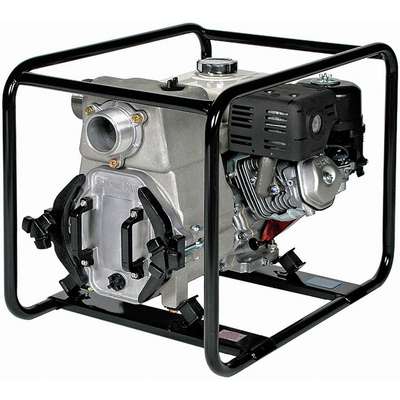

8 HP Aluminum, Cast Iron 242cc Engine Driven Trash Pump, 1.6 gal Tank Capacity

Hover over image to magnify
Engine Driven Trash Pump,8 Hp,
PI_Asset_1355476
Engine Driven Trash Pump,8 Hp,
PI_Asset_1355476

#924613-7 | Pkg Qty: 1

$1,780.74 pkg | $1,780.74 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
EPA/CARB
Length
27-1/2 in.
Bearing Type
Ball, Permanently Lubricated and Sealed
Material of Construction
Aluminum, Cast Iron
Brand
TSURUMI
Maximum Head
90 ft.
Casing Adapter
Aluminum
Maximum Pressure
39 psi
Check Valve
Buna-N
Maximum Specific Gravity
1
Drain Plug
3 in. NPT
Maximum Suction Lift
26 ft.
Duty
Heavy
Mechanical Seal
Silicon Carbide
Engine Brand
Honda
Mfr. Part Number
EPT3-80HA
Engine RPM
3600
Mfr. Warranty Length
2 yr.
Engine Size
242 cc
Minimum GPM @ Head
2 gpm @ 95 ft.
Engine/Motor Type
Gas
Motor RPM
3600
GPM of Water @ 10 Ft. of Head
350
Motor Type
Gas Engine
GPM of Water @ 2 Ft. of Head
356
Outlet
3 in. NPT
GPM of Water @ 20 Ft. of Head
320
Package Quantity
1
GPM of Water @ 25 Ft. of Head
300
Port Rotation
None
GPM of Water @ 30 Ft. of Head
290
Roll Bar Frame
Steel
GPM of Water @ 40 Ft. of Head
260
Screw Material
Galvanized Steel
GPM of Water @ 50 Ft. of Head
230
Seal Material
Silicon Carbide
GPM of Water @ 60 Ft. of Head
180
Seal Type
Mechanical
GPM of Water @ 70 Ft. of Head
140
Self-Priming
Yes
GPM of Water @ 80 Ft. of Head
75
Sensor Type
Low Oil
GPM of Water @ 90 Ft. of Head
20
Shaft Material
Stainless Steel
Height
25-1/2 in.
Shipping Weight
140 lb.
Horsepower
8
Solids Handling Capacity
1-1/2 in.
Housing Material
Cast Aluminum
Temperature Range
33 deg. F to 104 deg. F
Ignition Type
Recoil
Type
Centrifugal
Impeller Material
Chrome Iron
Volute Material
Cast Iron
Impeller Type
Semi Open
Volute/Wear Plate
Cast Iron
Inlet
3 in.
Wetted Materials
Cast Iron
Item
Engine Driven Utility Pump
Width
20 in.
General
Application
Dewatering
Frame Design - Pumps
Full Tubular Frame
Discharge Dia.
3 in
HP
8 hp
Discharge Gender
Male
Impeller Design
Semi-Open
Discharge Standard
NPT
Inlet Dia.
3 in
Flow Rate @ 10 Ft. of Head
350.0 gpm
Inlet Gender
Male
Flow Rate @ 20 Ft. of Head
320.0 gpm
Inlet Standard
NPT
Flow Rate @ 40 Ft. of Head
260.0 gpm
Max. Diameter Solids
1-1/2 in
Flow Rate @ 60 Ft. of Head
180.0 gpm
Maximum Discharge Pressure
39 psi
Flow Rate @ 80 Ft. of Head
75.0 gpm
Maximum Self-Priming Lift
20.0 ft
For Use With
Unclean Water
Pump Mechanism
Centrifugal

Product Description

These remote-location engine-driven trash and utility pumps are gasoline powered so they don't need to be placed near an electrical outlet, and they run for long periods of time between refueling. They transfer large amounts of water containing medium to large solids, and they drain water using an inlet hose so the pumps don't have to be placed in the water that needs to be drained. Pumps have a tubular frame to protect the engine and the pump.
