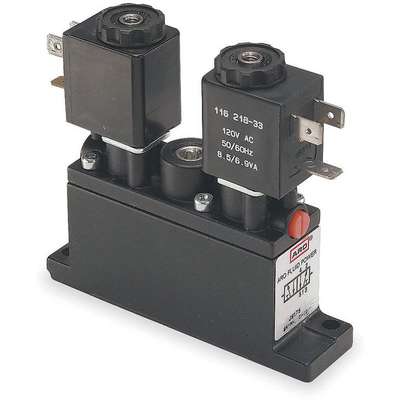

Solenoid Air Control Valve: 120V AC, Solenoid / Solenoid, 1/4 in Pipe Size, 50 to 150 psi

Name: Solenoid Air Control Valve: 120V AC, Solenoid / Solenoid, 1/4 in Pipe Size, 50 to 150 psi
Brand: ARO
SKU: 9246116
Price: 356.3 USD
Availability: InStock

Hover over image to magnify

#924611-6 | Pkg Qty: 1

$356.30 pkg | $356.30 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Actuator/Return

Solenoid/Solenoid

Overall Height

3-9/16 in.

Air Consumption

scfm

Overall Length

3-7/8 in.

Ambient Temperature

Up to 180 deg. F

Overall Width

1 in.

Body Style

Manifold

Package Quantity

Brand

ARO

Pipe Size

1/4 in.

CFM

Port Size

1/4 in.

Coil

120 VAC

Shipping Weight

.9 lb.

Electrical Connections

DIN Connectors

Type

Manifold, 4 Way, 3 Position, Spring Centered, All Ports Blocked in Neutral

Item

Solenoid Air Control Valve

Valve Actuator/Return

Solenoid / Solenoid

Maximum CFM

Valve Type

4-Way, 3-Position, Spring Centered

Maximum Operating PSI

150

Valve Vacuum Range

0 to 29 in. Hg

Mfr. Part Number

A349SD-120-A

Valve Ways/Positions

4-Way/3-Position

NEMA Classification

NEMA 4

Voltage

120 VAC

Operational Pressure Range

50 to 150 psi

Width

1 in.

General

Actuator / Return

Solenoid/Solenoid

Pneumatic Valves Product Group

Solenoid Air Control Valve

Air Valve Type

4-Way, 3-Position

Shifting Technology

Solenoid/Pilot

Center Position

Closed

Valve Actuator / Return

Solenoid / Solenoid

Max. CFM - Valves

61 cfm

Valve Ways and Positions

4-Way/3-Position

Product Description

This ARO Alpha® solenoid air control valve offers easy removal and replacement. Model can be used with vacuum with external pilot supply.

1.2 Cv
Up to 600 cycles/min.
Note: When operating below 50 psi, Low-Pressure Kit No. 4HN96 must be used. Coils and connectors available separately.
