GENERAL ELECTRIC

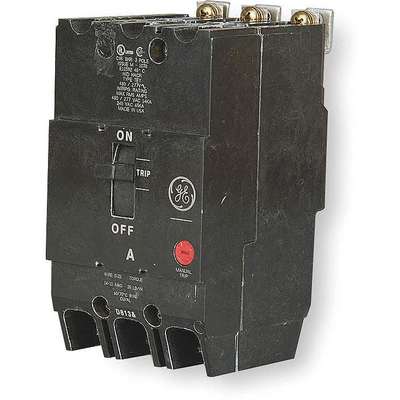

General Electric Bolt On Circuit Breaker, 60 Amps, Number of Poles: 3, 277/480VAC AC Voltage Rating
Hover over image to magnify
#924594-7 | Pkg Qty: 1
$877.50 pkg | $877.50 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Voltage Rating
277/480VAC
Item
Molded Case Circuit Breaker
Air @ 120 VAC
14kA
Length
5-1/4 in.
Air @ 125 VDC
Not Rated
Maximum Air Rating
14kA at 277/480VAC
Air @ 240 VAC
14kA
Maximum Wire Size
4 AWG
Air @ 277 VAC
14kA
Mfr. Part Number
TEY360
Air @ 48 VDC
Not Rated
Minimum Wire Size
10 AWG
Air @ 480 VAC
14.0kA
Number of Poles
3
Air @ 600 VAC
Not Rated
Package Quantity
1
Air @ 65 VDC
Not Rated
Panelboard Mounting
Bolt-On
Amperage
60 A
Phase
Three
Amps
60 A
Phase Connection
ABC
Brand
GENERAL ELECTRIC
Series
TEY
Circuit Breaker Type
Standard
Shipping Weight
2.06 lb.
DC Voltage Rating
250VDC
Terminal Connection
Lug
Depth
3.06 in.
Trip Type
Thermal Magnetic
For Use With
GE AE Lighting Panels
Type
Panelboard Mount
Frame Size
125A/TEY
Voltage
480Y - 277VAC
Height
5-1/4 in.
Warranty
2ACD1
High Amp Trip Setting
1250 A
Width
3 in.
Instantaneous Trip
Fixed
General
AIR @ 120VAC
14kA
Circuit Breaker Actuator
Toggle
AIR @ 240VAC
14kA
Circuit Breaker Mounting Style
Bolt On Panelboard
AIR @ 277VAC
14kA
Standards
CSA Certified
AIR @ 480VAC
14.0kA
Product Description
TEY-frame GE molded case circuit breakers are rated up to 125A and interrupt excessive current flows to protect devices from electrical damage. They're typically used with GE light panels, motor control centers, and panelboards. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Item Barcode
Bolt On Circuit Breaker,60A,3
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3HXF7 | Bolt On Circuit |
 | UNSPSC CODES | 39121601 | |
 | VMRS (ATA) CODES | 053-006-009 | Bolt On Circuit |
