BONOMI

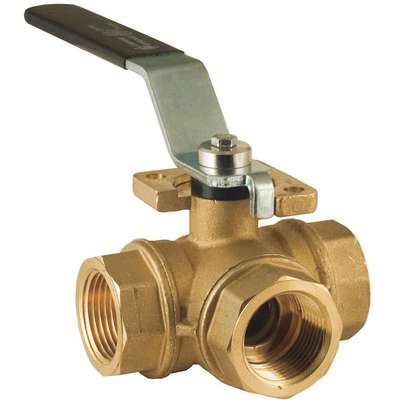

Ball Valve: 3/4 in Pipe Size, Std T, 400 psi CWP Max. Pressure, -4° to 366°F, Lever Handle
Hover over image to magnify
#924588 | Pkg Qty: 1
$98.03 pkg | $98.03 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ball Valve Group
Manual
Maximum Pressure
400 psi CWP
Ball Valve Item
Ball Valve
Mfr. Part Number
355N-3/4"
Body Material
Brass
Package Quantity
1
Body Style
3-Way
Port
Standard T
Brand
BONOMI
Seal Material
EPDM/Viton
Connection Type
FNPT x FNPT
Seat Material
PTFE
For Pipe Size
3/4 in.
Shipping Weight
1.5 lb.
General Connection Type
Female NPT
Stem Material
Brass
Handle Material
Zinc Plated Steel with Vinyl Grip
Stem Type
Blowout Proof
Handle Type
Lever
Temperature Range (Deg. F)
-4 to 366 deg. F
Item
Ball Valve
Valve Style
4-Piece
General
Ball Valve Product Group
Manual
Standards
ANSI B1.20.1
Features
Valve has 4 Ball Seats; therefore, any port can be the pressurized inlet
Valve Basic Body Material
Brass
Max. Steam Pressure
100 psi WSP
Valve Structure
4-Piece
Product Description
This Bonomi® ball valve features double O-ring stem packing and O-ring backing for low operating torque. Valve has a 90° and 180° flow path. For a specific flow pattern, remove the handle and reorient the valve stem to the desired flow path (see markings on top of the ball valve stem), then reattach the handle.
Item Barcode
Ball Valve,3-Way,Standard T
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 46CE41 | Ball Valve,3- Way,Standard |
 | UNSPSC CODES | 40141607 | |
 | VMRS (ATA) CODES | 053-006-009 | Ball Valve,3- Way,Standard |
