JET

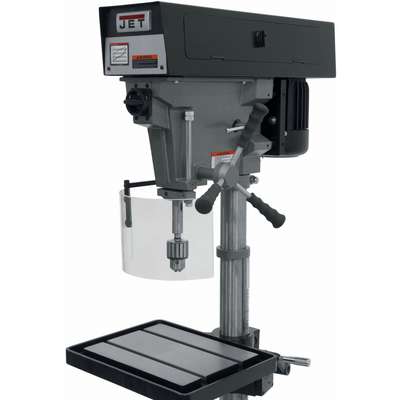

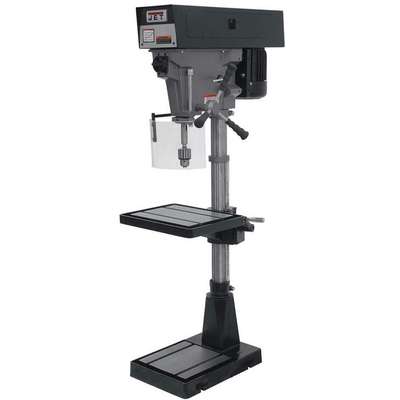

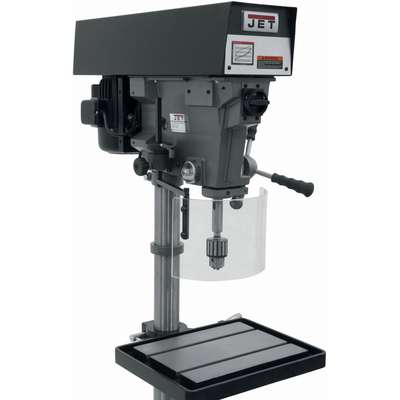

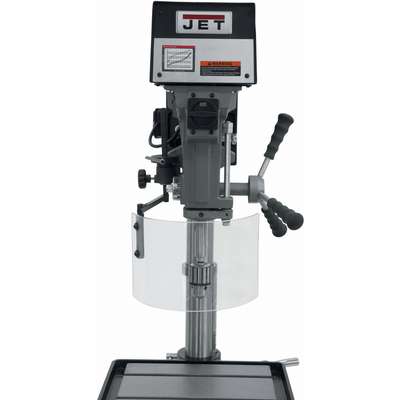

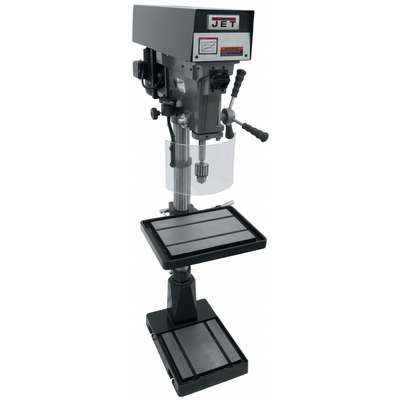

Jet 1 Motor HP Floor Drill Press, Belt Drive Type, 15" Swing, 115/230 Voltage
Hover over image to magnify
#924586-2 | Pkg Qty: 1
$2,490.34 pkg | $2,490.34 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
14
Mfr. Part Number
354500
Application
Drilling
Overall Depth
30 in.
Brand
JET
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
384 lb.
Horsepower
1 HP
Speed Control
Variable
Hz
60
Swing
15 in.
Item
Floor Drill Press
Voltage
115/230
General
Chuck Capacity
1/2 in
Maximum Spindle-to-Base Height
44 1/2 in
Chuck Style
Keyed
Maximum Spindle-to-Table Height
25 3/4 in
Column Diameter
3 in
Minimum Spindle Speed
375 RPM
Current
14 A
Nominal Voltage
115/230V AC
Drill Press Application
Drilling
Quill Diameter
2 1/4 in
Drill Press Type
Floor Stand
Speed Adjustment
Step Pulley
Drill Spindle Travel
6 in - 7 in
Speed Range
400 to 5,000 RPM
Drilling Capacity in Cast Iron
5/8 in
Spindle Speed Range
375 RPM - 5,000 RPM
Drilling Capacity in Stainless Steel
25/64 in
Spindle Travel
6 in
Drilling Capacity in Steel
1/2 in
Spindle-to-Column Distance
15 in
Drilling Capacity in Wood
5/8 in
Table Length
15 in
Guard Included
Yes
Table Load Capacity
90 lb
Includes
Drill Chuck and Arbor
Table Slot
Yes
Maximum Overall Height
71 in
Table Slot Width
1/2 in
Maximum Spindle Speed
5,000 RPM
Table Width
18 in
Product Description
Drill Presses
- Geared Head
- Designed for speed versatility with low speed for large holes and high speed for small holes. Optimum® models include complete coolant system.
Item Barcode
Floor Drill Press,Belt,15",1
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 42W844 | Floor Drill Press,Belt, |
 | UNSPSC CODES | 27112703 | |
 | VMRS (ATA) CODES | 053-006-009 | Floor Drill Press,Belt, |
