EATON

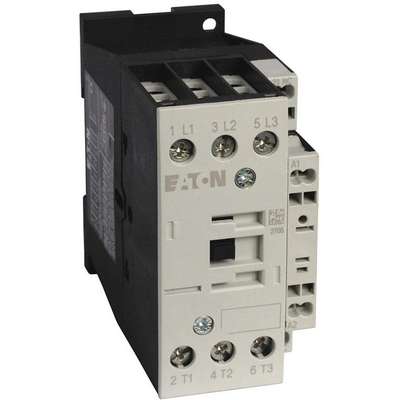

Eaton 120VAC IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 32 Full Load Amps-Inductive
Hover over image to magnify
#924555-6 | Pkg Qty: 1
$309.72 pkg | $309.72 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Nonreversing
Item
IEC Magnetic Contactor
Brand
EATON
Mfr. Part Number
XTCE032C10A
Coil Volts
120 VAC
Number of Poles
3
Depth
3.82 in.
Package Quantity
1
Enclosure NEMA Rating
No Enclosure
Reversing
No
Enclosure Type
Open
Series
Frame C
Height
1.77 in.
Shipping Weight
.99 lb.
Hz
50/60
Width
1.77 in.
General
Aux. Contact Configuration
1NO
HP @ 1 Phase - 240V
5 hp
Auxiliary Contact Form
1NO
HP @ 3 Phase - 208V
10 hp
Contactor Type
IEC
HP @ 3 Phase - 230V
10
Frame / Series / Class / Code
Frame C
HP @ 3 Phase - 240V
10 hp
Full Load Amps-Inductive
32 A
HP @ 3 Phase - 480V
20 hp
Full Load Amps-Resistive
45 A
HP @ 3 Phase - 575V
25 hp
HP @ 1 Phase - 120V
3 hp
Standards
UL/CE/CSA/CCC/ATEX/IEC EN 60947
HP @ 1 Phase - 230V
5
Product Description
IEC Contactors and Overload Relays
- IP20 rated Contactors rated: -25° to 50°C Relays rated: -25° to 65°C
- Designed for industrial applications, Eaton XT/DIL M Series heavy-duty contactors can be combined with electronic overload relays to make a starter. Reversing contactors are available with screw terminals and panel or DIN-rail mounting. 690VAC max., 50/60 Hz. Feature low-wattage coils, auxiliary contacts, front access coil terminals, toolless assembly, and dual clamps for multiwire. Electronic Overload Relays have selectable trip class and phase unbalance, to protect motor life. Feature 5:1 current adjustment, Class 10A, 10, 20, 30 selectable protection, and are self-powered. Status LED indicates the overload operational status.
- UL Listed, CE Approved, and CSA Certified. ATEX Listed and RoHS Compliant.
Expertly Selected Product Pairings
Documents
Item Barcode
Iec Magnetic Contactor,120VAC,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4TYZ5 | IEC Magnetic Contactor, |
 | UNSPSC CODES | 39121529 | |
 | VMRS (ATA) CODES | 053-006-009 | IEC Magnetic Contactor, |
