EATON

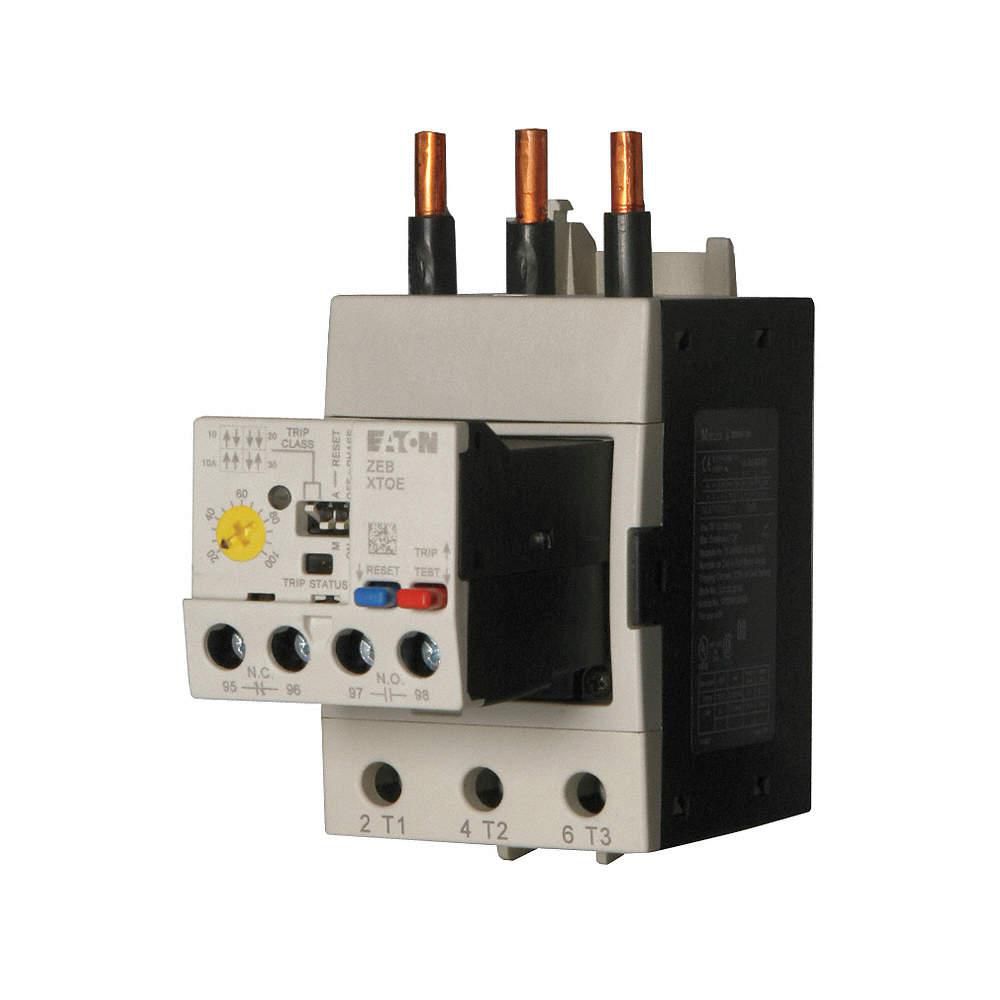

Eaton Overload Relay, Trip Class: 5/10/20/30 Selectable, Current Range: 4.00 to 20.0A, Number of Poles: 3
Hover over image to magnify
#924529-3 | Pkg Qty: 1
$208.01 pkg | $208.01 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
EATON
Number of Poles
3
Current Range
4.00 to 20.0A
Package Quantity
1
Depth
4-1/2 in.
Sensing Method
Electronic
Frame Size
45mm
Shipping Weight
.85 lb.
Height
3-1/2 in.
Starter Type
IEC
Item
Overload Relay
Type
Electronic, ZEB32-20
Mfr. Part Number
XTOE020CCS
Width
2-1/4 in.
General
Body Depth - Relay
4.5 in
Overload Relay Current Range
4.0 to 20.0A
Body Height - Relay
3.5 in
Reset Type - Relay
Auto, Manual
Body Width - Relay
2.25 in
Standards
UL, CSA, IEC
Features
Solid State Overload Relay, Wide Adjustment Range, Optional Communications Available
Trip Class
5/10/20/30 Selectable
For Use With
18 to 32A Contactors
Trip Class - Overload
10, 20, 30, 5
Frame / Series / Class / Code
Frame C
Use With - Contactors and Starters
Mfr. Series XTCE Contactors
Overall Height - Relay
4.32 in
Product Description
IEC Contactors and Overload Relays
- IP20 rated Contactors rated: -25° to 50°C Relays rated: -25° to 65°C
- Designed for industrial applications, Eaton XT/DIL M Series heavy-duty contactors can be combined with electronic overload relays to make a starter. Reversing contactors are available with screw terminals and panel or DIN-rail mounting. 690VAC max., 50/60 Hz. Feature low-wattage coils, auxiliary contacts, front access coil terminals, toolless assembly, and dual clamps for multiwire. Electronic Overload Relays have selectable trip class and phase unbalance, to protect motor life. Feature 5:1 current adjustment, Class 10A, 10, 20, 30 selectable protection, and are self-powered. Status LED indicates the overload operational status.
- UL Listed, CE Approved, and CSA Certified. ATEX Listed and RoHS Compliant.
