DAYTON

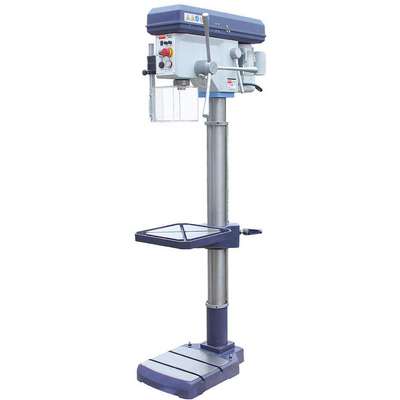

Dayton 1 Motor HP Floor Drill Press, Belt Drive Type, 15-3/4" Swing, 120 Voltage

Hover over image to magnify
Floor Drill Press,Belt Drive,
Floor Drill Press,Belt Drive,

#924515-5 | Pkg Qty: 1

$3,681.58 pkg | $3,681.58 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
15
Mfr. Part Number
53UG98
Application
Production Drill Press
Overall Depth
27-1/2 in.
Brand
DAYTON
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
400 lb.
Horsepower
1 HP
Speed Control
Fixed
Hz
60
Swing
15-3/4 in.
Item
Floor Drill Press
Voltage
120
General
Chuck Capacity
5/8 in
Maximum Spindle-to-Table Height
33 3/4 in
Chuck Style
Keyed
Minimum Spindle Speed
145 RPM
Column Diameter
3 3/8 in
Nominal Voltage
115V AC
Current
15 A
Quill Diameter
2 in
Drill Press Application
Boring, Countersinking, Drilling, Reaming, Tapping
Speed Adjustment
Step Pulley
Drill Press Type
Floor Stand
Speed Range
145 to 4,800 RPM
Drill Spindle Travel
4 in - 5 in
Spindle Speed Range
145 RPM - 4,800 RPM
Drilling Capacity in Steel
1 in
Spindle Travel
4 1/4 in
Guard Included
Yes
Spindle-to-Column Distance
8 in
Includes
Chuck and Arbor, Forward and Reverse Switch, Halogen Work Light, Safety Drill Guard, Tool Ejector
Table Length
12 in
Maximum Overall Height
67 3/4 in
Table Slot
Yes
Maximum Spindle Speed
4,800 RPM
Table Width
12 in
Maximum Spindle-to-Base Height
50 1/4 in
Tilting Angle
Non-Tilting

Product Description

Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Tapping, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 15 3/4 in, Spindle-to-Column Distance 8 in, Horsepower 1 hp, Voltage 120V AC, Spindle Taper 3MT, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 in, Drilling Capacity in Steel 1 in

Documents

Dayton Drilling Catalog
Item Barcode
9245155
Floor Drill Press,Belt Drive,
 NameItemDescription
Grainger DropshipGrainger Dropship53UG98Floor Drill Press,Belt
UNSPSC CODESUNSPSC CODES27112703
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Floor Drill Press,Belt
