EATON

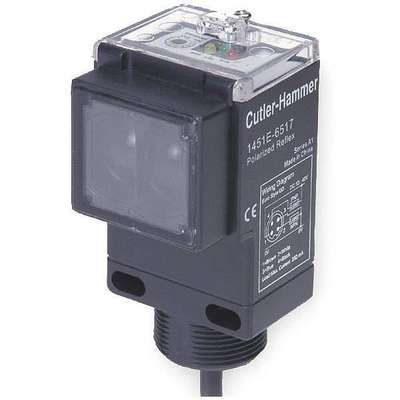

Eaton 88mm Selectable Light On/Dark On Rectangular Photoelectric Sensor; Sensing Method: Retroreflective
Hover over image to magnify
#924499-2 | Pkg Qty: 1
$324.93 pkg | $324.93 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Fiberglass Reinforced Plastic
Minimum Object Size
Adjustable By Changing Gain
Brand
EATON
NEMA Rating
1, 2, 3, 4, 4X, 6, 12, 13
Circuit Type
SPDT
Operating Frequency
33 Hz
Contact Form
SPDT
Operating Modes
Selectable Light On/Dark On
Depth
1.91 in.
Operating Temperature Range
-2 deg. C to 5 deg. C
Electrical Connection
2m Cable
Output Circuit Type
SPDT
Height
88 mm
Power Requirement
24 to 240VAC/12 to 240VDC
IP Rating
67
Response Time
15 msec
Item
Photoelectric Sensor
Sensing Method
Retroreflective
Length
3.46 in.
Shape
Rectangular
Light Source
Red LED
Shipping Weight
.65 lb.
Maximum Amps
3
Style
Rectangular Photoelectric Sensor
Maximum Load Current
3A
Temperature Range (Deg. F)
-13 to 151 deg. F
Maximum Sensing Distance
4900mm
Type
Polarized Retroreflective
Maximum Sensing Distance - Rectangular Photoelectric Sensor
4.9m
Voltage Range
24-240 VDC
Mfr. Part Number
1451E-6514
Width
1.81 in.
General
Depth - Rectangular Photoelectric Sensor
48 mm
Output Circuit Type - Rectangular Photoelectric Sensor
SPDT
Electrical Connection - Rectangular Photoelectric Sensor
2m Cable
Power Requirement - Rectangular Photoelectric Sensor
24 to 240V AC/12 to 240V DC
Features
Output Short Circuit, Overcurrent and Reverse Polarity Protection
Sensing Method - Rectangular Photoelectric Sensor
Retroreflective
Height - Rectangular Photoelectric Sensor
88 mm
Shape - Rectangular Photoelectric Sensor
Rectangular
Operating Mode - Photoelectric Sensor
Selectable Light On/Dark On
Standards
UL 508 Listed, CSA Certified, CE Approval
Operating Temp. Range
-25° to 55°C
Style - Rectangular Photoelectric Sensor
Rectangular Photoelectric Sensor
Operation Mode
Selectable Light On/Dark On
Width - Rectangular Photoelectric Sensor
46 mm
Product Description
This thru-beam sensor transmits infrared and visible red light between its source and detector on opposite sides of a detection zone. The switch will actuate when this beam of light is either blocked (when set for dark operation), or completed (light operation).
