ASHLAND CONVEYOR

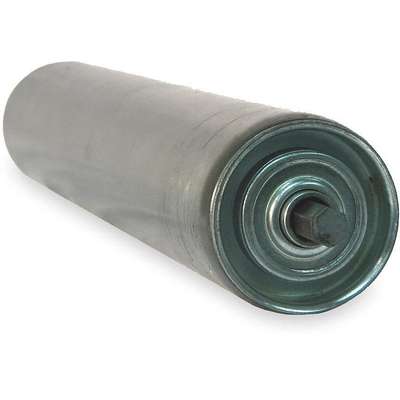

Ashland Conveyor Replacement Roller, General Purpose, 16" For Between Frame Width, 496 lb Roller Load Capacity

Hover over image to magnify
Steel Replacement Roller,2-1/
PI_Asset_1355708
Steel Replacement Roller,2-1/
PI_Asset_1355708
Ashland Conveyor Replacement Roller, General Purpose, 16" For Between Frame Width, 496 lb Roller Load Capacity Video
Ashland Conveyor Replacement Roller, General Purpose, 16" For Between Frame Width, 496 lb Roller Load Capacity Video
Ashland Conveyor Replacement Roller, General Purpose, 16" For Between Frame Width, 496 lb Roller Load Capacity Video

#924494-2 | Pkg Qty: 1

$42.22 pkg | $42.22 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Axle Shape
Hex
Mfr. Part Number
U16
Axle Size
7/16 in.
Motorized
No
Bearings
Commercial Light Oil
Mounting
Spring Retained
Brand
ASHLAND CONVEYOR
Package Quantity
1
Capacity
496 lb.
Roller Diameter
2-1/2 in.
Construction
14 ga. Steel
Roller Gauge
14 ga.
Conveyor Roller Material
Steel
Roller Performance
General Purpose
Diameter
2-1/2 in.
Shaft
7/16 in. Hex Plain Steel
Duty Rating
Medium-Duty
Shipping Weight
4.8 lb.
For Between Frame Width
16 in.
Type
Medium Duty
Item
Replacement Roller
General
Between Frame (In.)
16
Roller Finish/Coating
Unfinished
Roller Dia.
2 1/2 in
Roller Load Capacity
496 lb

Product Description

General purpose steel conveyor rollers are suitable for light-duty and medium-duty unpowered (gravity-flow) conveying tasks in warehousing, package handling, manufacturing, and distribution applications. They are typically an economical alternative to rollers made from other materials. The rollers have standard ball bearings that roll smoothly at slow speeds and start rolling more easily than precision bearings. Conveyor rollers are used in roller conveyors and material transport stands to support and move bulky items such as boxes and totes. The rollers let loads roll from one place to another, reducing the effort it takes to move the loads. These rollers can be used to replace or upgrade the existing rollers on compatible conveyors or stands.

Conveyor rollers are used in unpowered (gravity-flow) roller conveyors, powered roller conveyors, roller-bed belt conveyors, and material transport stands to support and move bulky items such as boxes and totes. These replacement rollers can be used to replace or upgrade the existing rollers on compatible conveyors or stands. Each roller has a spring-retained axle that can be pushed in to install or remove the roller from the conveyor frame or stand. The rollers let loads roll from one place to another, reducing the effort it takes to move the loads in warehousing, package handling, manufacturing, and distribution tasks. Loads roll forward and back on the rollers, and they can be pushed from side to side along the width of the conveyor.

Expertly Selected Product Pairings

Roller Bracket,For 7/16 In Hex
$22.96 pkg | $22.96 ea
Item: 929813-8 | Pkg Qty: 1
