DAYTON

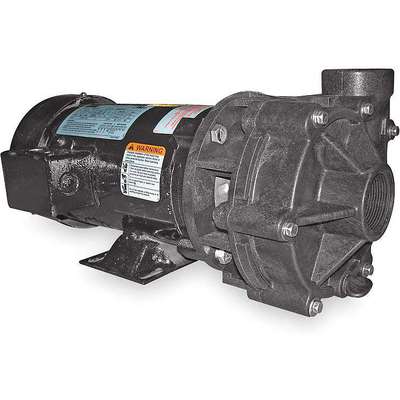

Centrifugal Pump: 1 1/2 hp HP, 230/460, 85 gpm @ 10 ft, 84 ft Max. Head, 1-1/2 in NPT, Noryl

Hover over image to magnify
Centrifugalpump,1 1/2hp,3ph,
Centrifugalpump,1 1/2hp,3ph,

#924480-3 | Pkg Qty: 1

$1,168.65 pkg | $1,168.65 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
c UL us
Maximum Case Pressure
100 psi
Amps
4.5-4.6/2.3 A
Maximum Diameter Solids
1/4
Bearing Type
Ball
Maximum Fluid Viscosity
100 SSU
Best Efficiency GPM @ Head
55 gpm @ 55 ft.
Maximum GPM @ Head
85 gpm @ 10 ft.
Best Efficiency Range GPM @ Head
41 to 73 gpm @ 70 to 30 ft.
Maximum Head
84 ft.
Brand
DAYTON
Maximum Liquid Temperature
180°F
Drain Plug
Yes
Maximum Specific Gravity
1
Duty
Continuous
Mfr. Part Number
2YEW3
Frame
56J
Mfr. Warranty Length
1 yr.
GPM of Water @ 10 Ft. of Head
85
Minimum GPM @ Head
21 gpm @ 80 ft.
GPM of Water @ 15 Ft. of Head
81
Motor Enclosure
TEFC
GPM of Water @ 20 Ft. of Head
78
Motor RPM
3450
GPM of Water @ 25 Ft. of Head
75
NEMA/IEC Frame
56J
GPM of Water @ 30 Ft. of Head
73
Outlet
1-1/2 in. NPT
GPM of Water @ 40 Ft. of Head
66
Pack Quantity
1
GPM of Water @ 50 Ft. of Head
59
Phase
3
GPM of Water @ 60 Ft. of Head
50
Port Rotation
None
GPM of Water @ 70 Ft. of Head
41
RPM
3450
GPM of Water @ 80 Ft. of Head
21
Screw Material
Stainless Steel
Height
7-1/2 in.
Seal Material
Viton, Noryl, Carbon, Ceramic
Horsepower
1-1/2
Seal Type
Mechanical
Housing Material
Noryl
Service Factor
1.15
Hz
60
Shaft Material
Stainless Steel
Impeller Material
Noryl
Shipping Weight
41.05 lb.
Impeller Type
Closed
Type
Chemical Resistant
Inlet
1-1/2 in. NPT
Voltage
208-230/460
Inlet Pressure
75 psi
Volute Material
Noryl
Inlet Type
1-1/2 in. NPT
Wetted Materials
Noryl, Viton, Carbon, Ceramic
Item
Centrifugal Pump
Width
7-5/8 in.
Length
15-7/8 in.
General
Application
Moderate Flow at Moderate Head Pressure, Transfer of Non-Flammable Liquids, Water Circulation, Booster Service, Irrigation, Spraying Systems, Jockey Pump Service, Aggressive Liquid Applications, and Other General Purpose Pumping
Includes
Manual
For Use With
Non-Flammable/Non-Abrasive Liquids compatible with pump component materials
Max. Dia. Solids
1/4 in
HP
1 1/2 hp
Max. Liquid Temp.
180 Degrees F

Product Description

Dayton close-coupled, non-metallic pumps produce high flow rates under moderate head conditions. Designed for transfer of nonflammable liquids, water circulation, booster service, irrigation, spraying systems, jockey pump service, aggressive liquid applications, and other general purpose pumping compatible with pump component materials where no suction life is required. Water seal flush port is provided for the decontamination of chemicals on the seal and seat elastomers.
