DAYTON

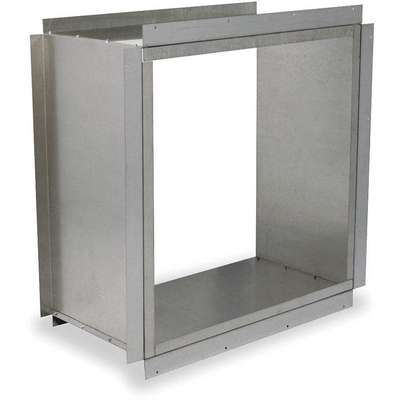

Dayton Wall Collar, For Fan Dia. (In.) 36, 16 Gauge Galvanized Steel, 40-1/8 Height (In.)

Hover over image to magnify
Wall Collar,36 In.,Galvanized
Wall Collar,36 In.,Galvanized

#924476-2 | Pkg Qty: 1

$445.25 pkg | $445.25 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Blade Diameter
36 in.
Material
16 Gauge Galvanized Steel
Brand
DAYTON
Mfr. Part Number
1WBV3
Depth
21-1/2 in.
Package Quantity
1
Gauge
18
Shipping Weight
78 lb.
Height
40-1/8 in.
Width
40-1/8 in.
Item
Wall Collar
General
For Blade Diameter
36 in
Overall HxWxD
40 1/4 in x 40 1/4 in x 21 1/2 in
For Cut-Out Height
41 5/8 in
Recommended Wall Opening HxW
41 5/8 in x 41 5/8 in
For Cut-Out Width
41 5/8 in
Recommended Wall Opening HxW (Direct-to-Wall Installation)
41 5/8 in x 41 5/8 in
Includes
(4) Mounting Angle, (4) Side Panel

Product Description

Mount Dayton propeller fans in commercial and industrial applications with this Dayton wall collar. It features an internal flange for mounting shutters (available separately) and an external flange that provides flashing for the wall opening. Constructed of 18 gauge galvanized steel, it helps resist corrosion in demanding environments. Use with Dayton® exhaust and supply propeller fans.

Documents

Solutions for Air Resource
Item Barcode
9244762
Wall Collar,36 In.,Galvanized
 NameItemDescription
Grainger DropshipGrainger Dropship1WBV3Wall Collar, 36 In.,
UNSPSC CODESUNSPSC CODES40101502
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Wall Collar, 36 In.,
