SPEEDAIRE

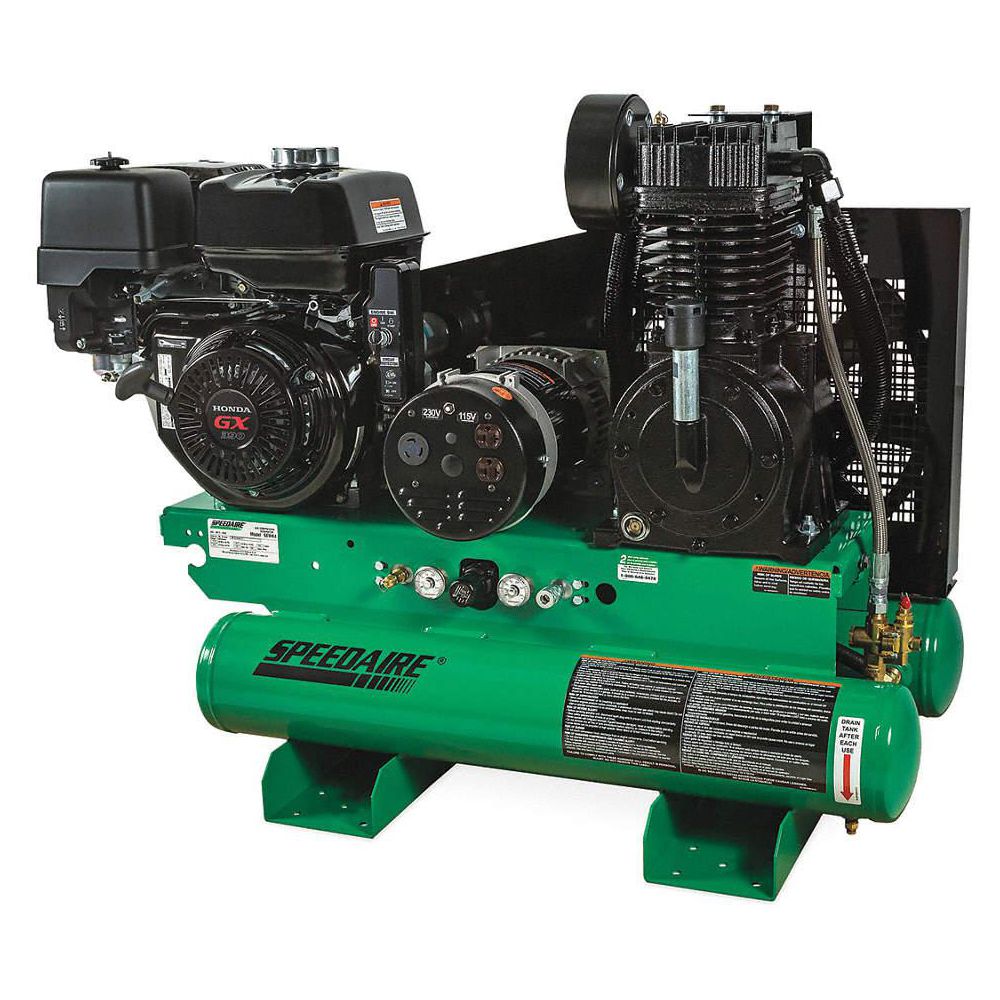

Stationary Air Compressor/Generator: 2 Stage, 13 hp Engine, Honda, 15.7 cfm, Horizontal

Hover over image to magnify
Compressor/Generator,13HP,1.
Compressor/Generator,13HP,1.

#924457-9 | Pkg Qty: 1

$3,745.71 pkg | $3,745.71 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
(F)NPT Outlet
3/8 in.
Overall Height
32 in.
Air Consumption
scfm
Overall Length
44 in.
Brand
SPEEDAIRE
Overall Width
22 in.
Engine Brand
Honda
Package Quantity
1
Frame
Stationary
Pump RPM
864
Free Air CFM @ 90 PSI
17
Pump Type
Two Stage Oil Lubricated
Free Air CFM @ Max Pressure
15.7
RPM
3600
Horsepower
13
Shipping Weight
442 lb.
Hz
60
Tank Size
8.0 gal.
Item
Stationary Air Compressor/Generator
Tank Style
Twin
Maximum Pressure
175 psi
Tank Type
Twin
Mfr. Part Number
AG2-SH13-08GE
Type
Stationary
Number of Outlets
3
Voltage
120
Number of Stages
2
Width
22 in.
General
Air Compressor Oil Capacity
24.7 oz
Low Oil Shut Down
Yes
Air Tank Size
8 gal
Low Oil Shutdown
Yes
Air Tank Style
Horizontal
Lubrication Required
Yes
Amps @ 120/240V
33.3/16.7
Lubrication Type - Air compressor
Oil Lubricated
Compressor Oil Capacity
24.7 oz
Max. Pressure - Air Compressor
175 psi
Compressor Oil Stock No.
4ZF21
Max. Watts @ 120V
4,000 W
Engine HP - Air Compressor
13.0 hp
Mobility
Stationary
Engine Oil Capacity
37 oz
Number of Stages - Air Compressor
2
Engine Oil Stock Number
1UBX8
Operating Frequency (Hz)
60
Engine Output Current
33.3/16.7 A
Outlet Connection Type
NPT
Engine Output Power
13 hp
Outlet Gender
Female
Engine Start Type
Electric
Pump Oil Capacity
24.7 oz
Engine Starter Type
Electric
Pump Type - Air Compressor
Piston
Engine Starter Type - Air Compressor
Electric
Rated Watts
2300/3500
Free Air CFM @ 90 PSI - Air Compressor
17.0
Rated Watts - Air Compressor, Generator
2300/3500
Free Air CFM @ Max. Pressure
15.7
Run Time @ 1/2 Load
5.3 hr
Free Air CFM @ Max. Pressure - Air Compressor
15.7
Run Time @ Full Load
3.8 hr
Free Air Flow Rate @ Maximum Pressure
15.7 cfm
Run Time @ Full Load (Hr./Tank)
3.8
Fuel Tank
1.7 Gal
Sleeves
Cast Iron
Fuel Tank Capacity - Air Compressor
1.7 gal
Sound Level - Air Compressor
80.4 dB
Fuel Type - Engine
Gasoline
Sound Level Range
Standard (70 dBA or more)
Full Power Switch
On/Off
Sound Level dB
80.4
Full-Load Run Time
3.8 hr
Tank Size - Air Compressor
8.0 gal
Guard Type
Steel
Tank Style - Air Compressor
Twin
HP
13.0
Wattage
4,000 W
Includes
(2) Gauges, Regulator

Product Description

Air compressor/generator from Speedaire® combines a 2-stage air compressor with 120V generator rated at 3500W with compressor off-load. Unit features an On/Off full power switch. This gas engine-powered model has a generator that includes one 120V, 15A duplex receptacle and one 230V, 20A receptacle. Model uses Compressor Oil No. 4ZF21 and Engine Oil No. 1UBX8, both sold separately.
