MOEN

Low Arc, Bathroom Sink Faucet, Wristblade Faucet Handle Type, 1.20 gpm, Chrome

Hover over image to magnify
Bathroom Faucet,2 Handles,4-5/
PI_Asset_972080
Bathroom Faucet,2 Handles,4-5/
PI_Asset_972080

#924452-1 | Pkg Qty: 1

$166.14 pkg | $166.14 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ADA Compliance
Yes
Material
Brass
Brand
MOEN
Mfr. Part Number
8800
CEC Compliant
CEC Compliant
Number of Holes
3
Connection Size
1/2 in. MNPT
Operation
Manual
Drain Type
None
Outlet Type
Aerated
Faucet Spout Shape
Low Arc
Package Quantity
1
Finish
Chrome
Shipping Weight
2.89 lb.
Flow Rate
1.20 gpm
Spout Length
4 in.
Handle Type
Wrist Blade
Temperature Control
Yes
Height
4-5/8 in.
Valve Type
Ceramic
Item
Bathroom Faucet
General
Faucet Activation
Manual
Max. Mounting Hole Center Distance
4 in
Faucet Body Material
Brass
Mounting Type - Faucet
Deck
Faucet Finish
Chrome
Number of Handles
2
Faucet Handle Material
Metal
Plumbing Brand
Moen
Faucet Handle Type
Wristblade
Replacement Cartridge Mfr. Model Number
1224
Faucet Installation Style
Centerset
Spout Height
3 5/16 in
Faucet Type
Bathroom Sink Faucet
Spout Reach
6 3/16 in
Flow Outlet Type - Faucet
Aerated
Standards
ASME A112.18.1/CSA B125.1, NSF 61/9 and 372, Complies with California Proposition 65 and with The Federal Safe Drinking Water Act
Green Certification/Other Recognition
WaterSense Certified
Valve Type - Faucets
Hot/Cold Cartridge
Green Environmental
Faucet Flow Rate 1.5 gpm Or Less
Vandal Resistant Features
Vandal Resistant Screws
Includes
Mounting Hardware
Water Inlet Connection Size
1/2 in
Max. Installation Surface Thickness
1 1/2 in

Product Description

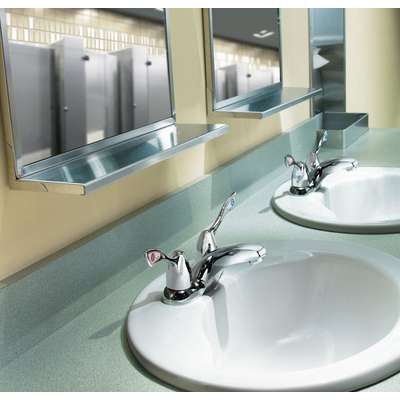

Low-arc-spout faucets have short spouts that sit close to the sink basin. They are frequently used on high-traffic sinks in public or commercial areas because they minimize the distance water travels from the spout to the sink, which reduces splashing.

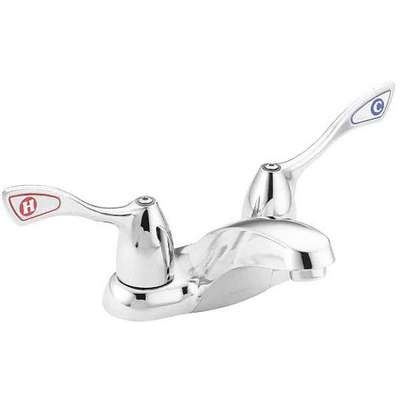

Dual-wristblade-handle two-hole centerset deck-mount bathroom faucets have two wing-shaped handles that users pull toward or push away from themselves to start or stop the flow of water. Each handle is operated separately to control the hot and cold water supplies and adjust the temperature of the water coming out of the spout. Also called paddle handles, wristblade handles can be operated with the wrist. Because they do not need to be gripped to push or pull the handle, wristblade handles can be used by some individuals with disabilities and are commonly found on faucets in medical settings. These faucets provide water for handwashing and grooming tasks. Two-hole centerset deck-mount faucets install onto sinks that have two centered holes that are 4" apart when measured from center-of-hole to center-of-hole. They can also be used to cover an unused middle hole on sinks with a three-hole centerset pattern.
