SSI

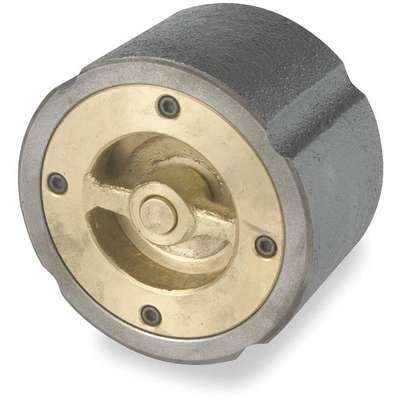

Silent Check Valve: Single Flow, Inline Silent, Cast Iron, 3 in Pipe/Tube Size, Flange x Flange
Hover over image to magnify
#924424-6 | Pkg Qty: 1
$124.22 pkg | $124.22 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SSI
Mfr. Part Number
0300-125WCIBM-T
Connection Type
125 Class Wafer Flange
Mounting Position
Vertical or Horizontal
Item
Silent Check Valve
Overall Height
5-3/8 in.
Length
5-3/8 in.
Package Quantity
1
Material
Cast Iron
Shipping Weight
10.33 lb.
Maximum Temperature
300 deg. F
Width
3-3/16 in.
General
Application - Valves
Process Piping
Max. Water Pressure - Valves
200 psi @ 250 Degrees F
Body Material - Valves
Cast Iron
Mechanism and Body Design
Inline Silent
Flow - Valves
700 gpm
Min. Temp. - Valves
60 Degrees F
Flow Design
Single
Mounting Orientation
Horizontal, Vertical
Full Flow - Valves
Yes
Pipe or Tube Size
3 in
Max. Steam Pressure - Valves
200 psi WSP
Standards
ASME Sec VIII and API598
Max. Temp. - Valves
300 Degrees F
Product Description
Silent
Max. temp.: 300°F ASME Class 125 wafer-style valves prevent flow reversal; eliminate water hammer and system surges. EPDM O-ring. Vertical or horizontal mount. For liquid service use in HVAC, power, process, chemical, and waste industries. Heavy-Duty Check Valves
Max. pressure: 200 psi
Item Barcode
Silent Check Valve,Cast Iron,3
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1RXF6 | Silent Check Valve,Cast |
 | UNSPSC CODES | 40141634 | |
 | VMRS (ATA) CODES | 053-006-009 | Silent Check Valve,Cast |
