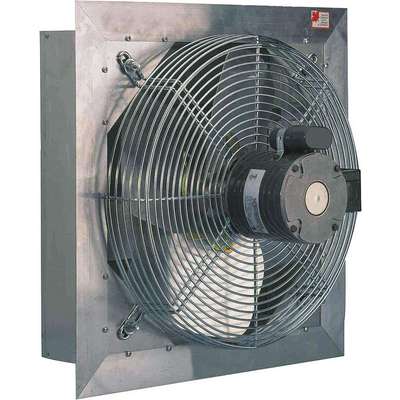

Delhi 1/3 HP 18"-Dia. 115/230VACV Shutter Mount Exhaust Fan, 20" Square Opening Required

Hover over image to magnify
Exhaust Fan,18 In,115/230V,1/
PI_Asset_3760966
Exhaust Fan,18 In,115/230V,1/
PI_Asset_3760966

#924409 | Pkg Qty: 1

$620.90 pkg | $620.90 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
CSA
Motor HP
1/3
Bearing Type
Ball
Motor Type
PSC
Blade Diameter
18 in.
Number of Blades
3
Blade Material
Galvanized Steel
Package Quantity
1
Brand
DELHI
Phase
1
Height
22-3/4 in.
Shipping Weight
41.24 lb.
Item
Shutter Mount Exhaust Fan
Voltage
115/230 VAC
Mfr. Part Number
AX18-1V
Width
22-3/4 in.
Motor Enclosure
Totally Enclosed Air-Over
General
Assembled
Fully Assembled
Manufacturer Warranty Length
1 yr
Blade Finish
Galvanized
Maximum Airflow
3,150 cfm
Discharge Direction
Horizontal
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.000 in SP
3,150 cfm
Maximum Exhaust Airflow @ 0.000 in SP
2001 to 4000 cfm
Exhaust Airflow @ 0.100 in SP
3,000 cfm
Maximum Noise Level
19.7 sones
Exhaust Airflow @ 0.125 in SP
2,900 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
Exhaust Airflow @ 0.250 in SP
2,575 cfm
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
Fan Style
Shutter-Mounted
Motor Horsepower
1/3 hp
Fan Voltage
115/230V AC
Motor Speed
1,700 RPM
For Cut-Out Height
20 in
Nameplate Voltage
115/230V AC
For Cut-Out Length
20 in
Noise Level @ 0.000 in SP @ 5 ft
19.7 sones
For Cut-Out Width
20 in
Noise Level @ 0.100 in SP @ 5 ft
19.7 sones
For Maximum Wall Thickness
5 in
Nominal Voltage
115/230V AC
For Minimum Wall Thickness
5 in
Number of Fans
1
Full Load Current
3.8 A
Speed Controllable
Yes
Guard Finish
Chrome
Square Opening Required
10-1/2 to 20 in
Guard Type
Intake
Supply Airflow @ 0.000 in SP
3,150 cfm
Includes
Shutter
Vent Design
Ductless
Includes Motor
Yes
Ventilation Type
Exhaust

Product Description

Shutter Mount Exhaust Fan, Blade Dia. 18 in, Number of Speeds Variable, Fan Voltage 115/230V AC, CFM @ 0.000-In. SP 3150, Exhaust/Supply Fan Motor HP 1/3 hp, Square Opening Required 20 in, CFM @ 0.125-In. SP 2900, CFM @ 0.250-In. SP 2575, Motor RPM 1700, Hz 60, Phase 1, Full Load Amps 3.8/1.9, Max. Ambient Temp. 104 Degrees F, Motor Type PSC, Motor Enclosure Totally Enclosed Air-Over, Motor Insulation Class B, Bearing Type Ball, Height 22 3/4 in, Width 22 3/4 in, Max. Depth 16 1/4 in
