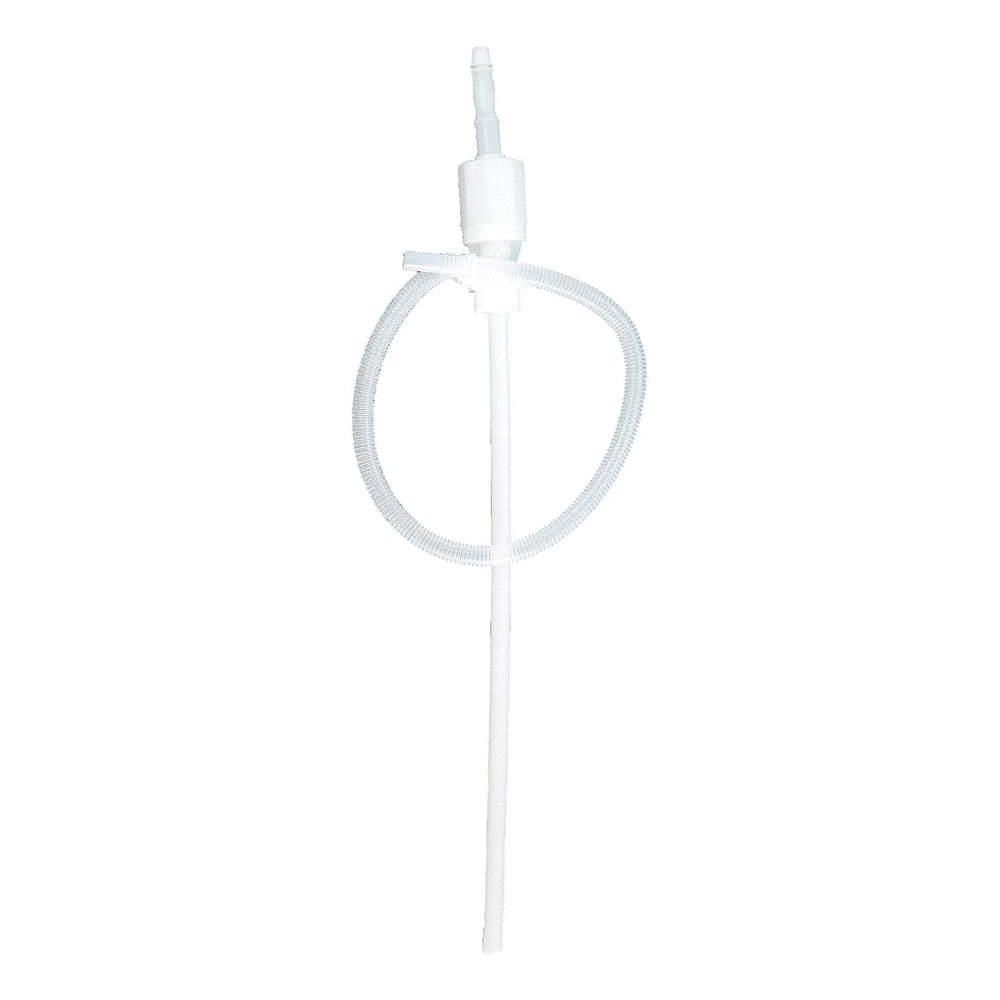

Polyethylene Hand Operated Pail Pump, Siphon, Ounces per Stroke: 5 oz.
Hover over image to magnify
#924275-6 | Pkg Qty: 1
$29.02 pkg | $29.02 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action Type
Siphon
Maximum Head
4 ft.
Adapter Diameter
2 in.
Maximum Liquid Temperature
130°F
Adapter Material
Polyethylene
Maximum Pressure
5 psi
Adapter Type
2" NPT
Maximum Viscosity
420 CPS
Agency Compliance
FDA Compliant, ISO 22241-3
Metered
No
Brand
APPROVED SUPPLIER
Mfr. Part Number
4004-FDA
Discharge Size
57/64
Mfr. Warranty Length
1 yr.
Discharge Tube Length
47-1/2"
Minimum Length
1 ft.
Discharge Tube Outlet ID Size
53/64"
Ounces per Stroke
5 oz.
Discharge Tube Outlet Outside Diameter
57/64"
Outlet Size
1"
Discharge Tubing Material
Polyethylene
Package Quantity
1
Food Grade
Yes
Piston Material
Polyethylene
GPM
7
Power Source
Hand Operated
Hand Operated Pump Action Type
Hand Operated Siphon Pumps
Seal Material
Polyethylene
Height
45-1/2 in.
Self-Priming
Yes
Hose Inside Diameter
13/16 in.
Shipping Weight
1 lb.
Hose Length
3.9 ft.
Spout Material
Polyethylene
Hose Material
Polyethylene
Suction Tube Outlet Outside Diameter
1 in.
Housing Material
Polyethylene
Suction Tube Type
Tube
Inlet Size
1"
Wetted Materials
Polyethylene
Item
Hand Operated Pail Pump
Width
7 in.
Length
4 in.
General
Adapter Connection Type
MNPT
Includes Bung Adapter
Yes
Bung Connection Dia.
2 in
Includes Discharge Hose
Yes
Compatible Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Calcium Chloride, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formaldehyde, Formaldehyde 40%, Fresh Water, Fungicides, Glycerin, Heptane, Herbicides, Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Isopropyl (Isopropanol), Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Paint, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid, Xylene
Includes Spout
Yes
Diesel Exhaust Fluid Compatible
Yes
Includes Suction Tube
Yes
Discharge Tube Outlet ID
53/64 in
Max. Flow Rate
5 oz per stroke
Discharge Tube Outlet OD
57/64 in
Max. Fluid Temp.
130 Degrees F
Features
No glues used in assembly, Virgin Polyethylene
Max. Head - Pumps
4 ft
For Container Size
15 gal, 30 gal, 55 gal
Max. Head Pressure
3 psi
For Container Type
Bucket, Drum, Pail
Max. Outlet Pressure
3 psi
For Media Type
Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Automatic Transmission Fluid, Biodiesel, Bleach, Calcium Chloride, Cyclohexane, DEF, Diesel Fuel, E85, Ethanol, Ethyl Acetate, Ethylene Glycol, Fertilizers, Formaldehyde, Fungicides, Glycerin, Heptane, Herbicides, Hydraulic Oil, Hydrochloric Acid, Isopropanol, Ketones, Methanol, Naphtha, Nitric Acid, Paint, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Stoddard Solvent, Water, Windshield Washer Fluid, Xylene
Min. Operating Temp.
35 Degrees F
For Use With
15 gal, 30 gal, 55 gal Drums, Food Products, Chemicals Compatible with Polyethylene
Not Recommended Chemicals
Hydraulic Oils (Petroleum), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Lacquer Thinners, Lithium Grease, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Toluene
Height Above Container
12 1/8 in
Pump Package Type
Basic Pump with Discharge Hose
Hose Cover Material
Polyethylene
Runs Dry
Yes
Hose Inside Dia.
13/16 in
Spout Connection Size
1 in
Hose Outside Dia.
1 in
Suction Tube ID
57/64 in
Hose Tube Material
Polyethylene
Suction Tube Material
Polyethylene
Housing Material - Pumps
Polyethylene
Suction Tube OD
1 in
Includes
Discharge Hose
Suction Tube Outlet Inside Diameter
57/64 in.
Product Description
Food and sanitary hand drum pumps comply with specific sanitary standards of the food and drug industry to minimize the risk of product contamination. Also called food grade drum pumps, they're typically used to dispense and transfer small volumes of syrups, juices, oils, and soaps in food, beverage, and pharmaceuticals production.
