Radnor AF-150-580 Series Flow Gauge Regulator, 0 to 50 psi, Argon, Carbon Dioxide
Hover over image to magnify
#924255-1 | Pkg Qty: 1
$254.20 pkg | $254.20 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Brass
Item
Gas Regulator
Brand
RADNOR
Maximum Inlet Pressure
3000 psig
CGA Connection Inlet
CGA580
Mfr. Part Number
RAD64003037
Cylinder Gas
Argon, CO2
Outlet Connection
5/8 in.-18 F RH
Delivery
0 to 50 scfh
Package Quantity
1
Delivery Pressure Range
0 to 50 psi
Regulator Supply Type
Cylinder
Gas Service
Argon, Carbon Dioxide
Series
AF-150-580
Gauge Size
2 in.
Shipping Weight
3.14 lb.
Inlet Connection
CGA-580
Stages
Single Stage
General
Argon Flow Rate (Maximum)
30 scfh
Inlet Thread Direction
Right Hand
CGA Number
CGA 580
Maximum Flow Rate
30 scfh (Argon) ; 30 scfh (Carbon Dioxide)
Carbon Dioxide Flow Rate (Maximum)
30 scfh
Maximum Gauge Inlet Pressure
3,000 psig
Compatible Gas Type
Argon, Carbon Dioxide
Mounting Type
Cylinder
Gauge Diameter
2 in
Number of Stages
Single Stage
Included Hose
10 ft
Outlet Connection Gender
Female
Inlet Connection Gender
Female
Outlet Thread Direction
Right Hand
Inlet Connection Size
0.965"-14
Regulator Application
General Purpose
Inlet Connection Type
NGO
Product Description

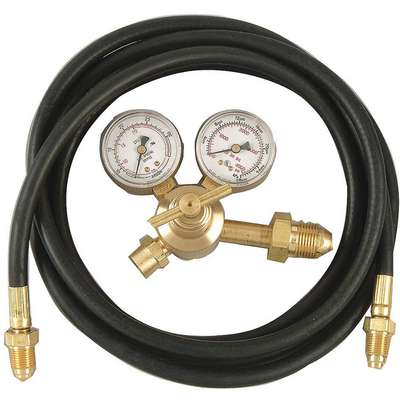

This flowgauge regulator is designed for use with argon and carbon dioxide mix gas. It features a stem-type seat mechanism, and forged brass body and housing cap.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Flow Gauge Reg.,Ar., Co2 Mix,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 31UR44 | Flow Gauge Reg.,Ar., |
 | UNSPSC CODES | 40142201 | |
 | VMRS (ATA) CODES | 053-006-009 |
