MADISON

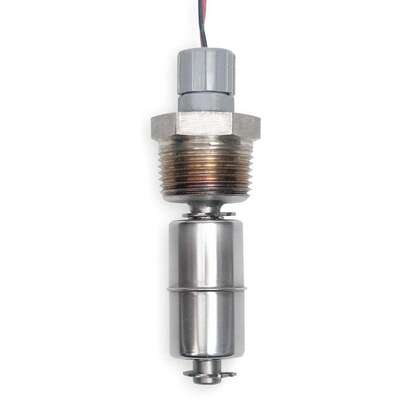

Madison Vertical Open Tank Drum Liquid Level Switch, Close On Rise, Stainless Steel, 3/4" NPT
Hover over image to magnify
#924253 | Pkg Qty: 1
$163.93 pkg | $163.93 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Stainless Steel
Maximum Voltage
240 V
Brand
MADISON
Mfr. Part Number
M4169-1
Conduit Size
3/4 in.
Mounting
Vertical Open Tank
Contact Form
SPST
Mounts
Vertical
Electrical Connections
22 AWG, Halar-jacketed, 72 in. Leads
Operating Temperature Range
302 deg. F
Fitting
3/4 in. NPT
Operation
Close On Rise
Float Diameter
0.90 in.
Overall Length
2.94 in.
Float Length
1.59 in.
Shipping Weight
.35 lb.
Float Material
Stainless Steel
Specific Gravity
0.73
Float Specific Gravity
0.73
Stem Length
2 in.
Height
2 in.
Stem Material
Stainless Steel
Item
Drum Liquid Level Switch
Switch Function
Close On Rise
Maximum Current
0.28A
Tank Connection Size
3/4 in. NPT
Maximum Pressure
150 psi
VA Rating
30
Maximum Temperature (Deg. C)
150
Wire Gauge
22 AWG
General
Operating Temp. Range
302°F Max
Product Description
This switch mounts on the top and bottom surfaces of a tank or vessel to actuate High/Low alarms or controls for motor starters, contactors, solenoids, and relays. The encapsulated, dependable, magnetically coupled dry reed switch is designed to deliver more than 5 million switching cycles at rated electrical load.
Item Barcode
Drum Lqd Lvl Swch,Vrtcl,3/4"
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2ZY52 | Drum Lqd Lvl Swch,Vrtcl,3/ |
 | UNSPSC CODES | 39122219 | |
 | VMRS (ATA) CODES | 053-006-009 |
