AIROTRONICS

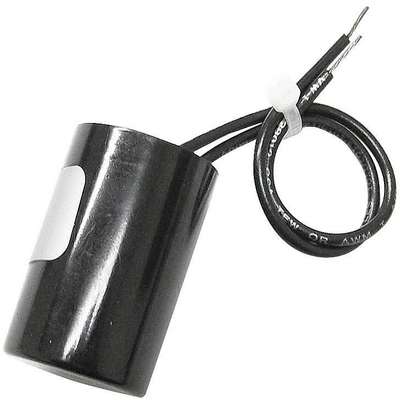

Airotronics Single Function Encapsulated Timing Relay, Function: Repeat Cycle Equal On/Off Time, Status Indicato

Hover over image to magnify
Encapsulated Timer Relay,1A,
Encapsulated Timer Relay,1A,
Airotronics Single Function Encapsulated Timing Relay, Function: Repeat Cycle Equal On/Off Time, Status Indicato Video

#924245-2 | Pkg Qty: 1

$19.71 pkg | $19.71 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
1.00 A @ 24 to 240 V
Minimum Time Setting
0.8 sec.
Adjustment Method
Potentiometer
Mounting
Surface
Base Type
Surface
Number of Contacts
1
Body Depth
0.99 in.
Number of Functions
1
Body Height
1.55 in.
Number of Pins
2
Body Width
0.99 in.
Operating Functions
6
Brand
AIROTRONICS
Output
Relay
Coil Volts
24 to 240 VAC/12 to 48 VDC
Package Quantity
1
Contact Form
SPST-NO
Pins
2
DC Contact Rating
1.00 A @ 12 to 48 V
Resistive Contact Amp Rating
1A
Function
Repeat Cycle Equal On/Off Time
Shipping Weight
.1 lb.
Hz
50/60
Socket Code
Surface
Input Voltage
24 to 240 VAC/12 to 48 VDC
Status Indicator
None
Input or Control Voltage
24 to 240 VAC, 12 to 48 VDC
Timing Range
Fixed 0.80 sec.
Item
Single Function Encapsulated Timing Relay
Type
Fixed
Maximum Time Setting
0.8 sec.
Type of Output
Relay
Mfr. Part Number
TEKRU075W
General
AC Contact Rating - Relay
1.00A @ 24 to 240V
Hz - Electrical
50 Hz, 60 Hz
Adjustment Method - Timer
Potentiometer
Max. Time Setting - Timer
0.8 sec
Body Depth - Relay
0.99 in
Min. Time Setting - Timer
0.8 sec
Body Height - Relay
1.55 in
Mounting - Relay
Surface
Body Width - Relay
0.99 in
Number of Pins - Relay
2
Contact Form - Relay
SPST-NO
Standards
UL508, Ulr
DC Contact Rating - Relay
1.00A @ 12 to 48V
Timer Range
Fixed 0.80 sec.
Function - Timing Relay
Repeat Cycle Equal On/Off Time

Product Description

Solid-state technology provides a long service life, reducing maintenance costs and production loss due to downtime. 1/4" quick-connect.

REPEAT CYCLE (EQUAL ON AND OFF DELAY TIME PERIODS): When power is applied to the coil, the Off time period is initiated; the contacts do not transfer. At the end of the Off time period, the On time period begins. The contacts transfer, either connecting (normally open contacts) or disconnecting (normally closed contacts) the load. At the end of the On period, the contacts transfer and the cycle continues until power is removed from the coil.
