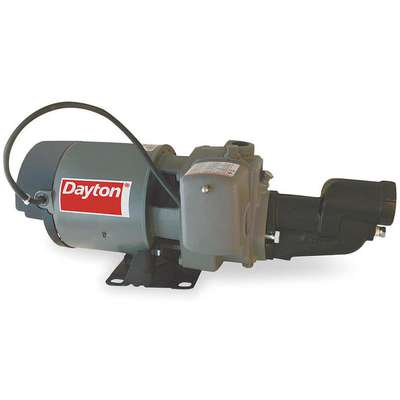

1 HP, Shallow Well Jet Pump, 115/230 VAC, Ejector Included Yes

Name: 1 HP, Shallow Well Jet Pump, 115/230 VAC, Ejector Included Yes
Brand: DAYTON
SKU: 9242321
Price: 728.61 USD
Availability: InStock

Hover over image to magnify

#924232-1 | Pkg Qty: 1

$728.61 pkg | $728.61 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Amps

18.0 9.0 A

Outlet

1 in. NPT

Amps AC

18.0/9.0

Package Quantity

Brand

DAYTON

Pump Material

Cast Iron

Horsepower

Resists

Corrosion and Fusing Thermoplastic

Inlet

1-1/4 in. NPT

Shipping Weight

55.05 lb.

Item

Shallow Well Pump

Shut-Off

70 psi

Maximum Operating Temperature

140

Voltage

115 - 230

Mfr. Part Number

1D872

General

Application

For Places Where the Vertical Distance to Water is Less than 25 Feet and Installed as a Single (Suction) Pipe System to the Water Source, to Augment Low City Water Pressure

GPM of Water @ 25 Ft @ 30, 50 PSI

11.5 11.2

Discharge Standard

NPT

GPM of Water @ 5 Ft @ 30, 50 PSI

23.2 22.5

Ejector Included

Yes

Includes

Pressure Switch

Flow Rate @ 10 Ft. Lift @ 30 PSI

18.8 gpm

Inlet Standard

NPT

Flow Rate @ 10 Ft. Lift @ 40 PSI

18.4 gpm

Max. Suction Lift

25 ft

Flow Rate @ 10 Ft. Lift @ 50 PSI

18.3 gpm

NPT Inlet

1-1/4

GPM of Water @ 10 Ft @ 30, 50 PSI

21.0 20.5

Pressure Switch Setting

30 to 50 psi

GPM of Water @ 15 Ft @ 30, 50 PSI

17.8 17.3

Rated Voltage

115/230V AC

GPM of Water @ 20 Ft @ 30, 50 PSI

14.8 14.5

Product Description

These shallow-well jet pumps supply water from wells up to 25-ft. deep and eliminate the need to connect to a municipal water source. They are mounted above ground for maintenance and repair compared to submersible well pumps that are installed in the well and need to be removed from the well for inspection. Pumps are not subject to pump twisting found in submersible pumps that causes them to strike against and damage the sides of the well casing. They are connected to an ejector, tank, and control panel to automatically supply water as needed.

Documents

Dayton Jet Pump OIPM

Item Barcode

Pump,Jet,Shallow Well

Cross References
Legal

Name	Item	Description
Grainger Dropship	1D872	Pump,Jet, Shallow Well
UNSPSC CODES	40151511
VMRS (ATA) CODES	053-006-009	Pump,Jet, Shallow Well
