FLEXITALLIC

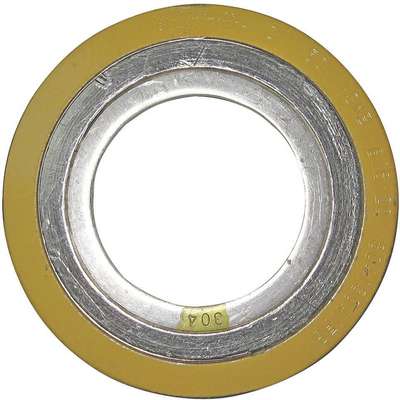

304SS and Flexible Graphite Spiral Wound Metal Gasket, 2-1/4" Outside Dia., Yellow Band, Gray Stripe
Hover over image to magnify
#924230-5 | Pkg Qty: 1
$6.75 pkg | $6.75 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
FLEXITALLIC
Outside Diameter
2-1/4 in.
Inside Diameter
13/16 in.
Package Quantity
1
Item
Spiral Wound Metal Gasket
Pipe Size
3/4 in.
Material
304SS and Flexible Graphite
Shipping Weight
.1 lb.
Metal Detectable
Yes
Temperature Range (Deg. F)
-320 to 842 deg. F
Mfr. Part Number
CGI
Thickness
11/64 in.
General
Continuous Max. Temp. (F)
842 Degrees F
Standards
ASME B16.20,ASME/ANSI Pressure Class-150 LB
Flange Class
Class 150
Winding
304SS with Flexible Graphite
Includes
Inner Ring
Product Description
Metal-Reinforced Spiral-Wound Ring Gaskets
- Meet ANSI B16.20.
- Flexitallic CGI
- Temp. range: -150° to 842°F
- 316 stainless steel windings with flexible graphite filler. Include inner ring. Suitable for use with flat face and raised face flanges and specified for high pressure/temperature service or where toxic or corrosive materials are present.
Item Barcode
Spiral Wound Metal Gasket,3/4
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 38R272 | Spiral Wound Metal Gasket, |
 | UNSPSC CODES | 31181503 | |
 | VMRS (ATA) CODES | 053-006-009 | Spiral Wound Metal Gasket, |
