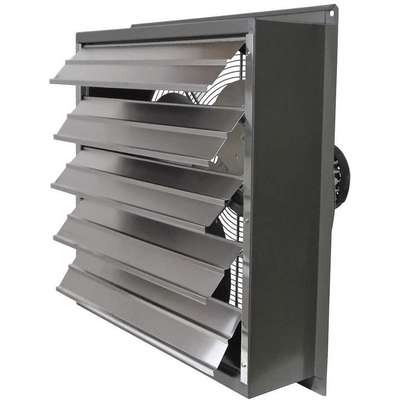

Delhi Shutter Mounted Hazardous Location Exhaust Fan: 24 in Blade, 1 Speed, 1/3 hp, 5,500 cfm, 115V AC

Hover over image to magnify
Exhaust Fan, Hazardous
PI_Asset_3735672
Exhaust Fan, Hazardous
PI_Asset_3735672

#924201-2 | Pkg Qty: 1

$1,070.81 pkg | $1,070.81 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
cETLus
Motor HP
1/3
Bearing Type
Ball
Mounting Position
Horizontal
Blade Diameter
24 in.
Number of Blades
3
Blade Material
Aluminum
Package Quantity
1
Brand
DELHI
Phase
1
Height
29-1/4 in.
Shaft Diameter
1/2 in.
Item
Shutter Mounted Explosion Proof Exhaust Fan
Shipping Weight
71 lb.
Mfr. Part Number
SD24-XPF
Voltage
115/208-230 VAC
Motor Enclosure
Explosion Proof Fan Cooled
Width
29-1/4 in.
General
Assembled
Fully Assembled
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.000 in SP
5,500 cfm
Maximum Exhaust Airflow @ 0.000 in SP
4001 to 6000 cfm
Exhaust Airflow @ 0.100 in SP
5,310 cfm
Maximum Noise Level
21 sones
Exhaust Airflow @ 0.250 in SP
5,100 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
Fan Style
Shutter-Mounted
Motor Enclosure Design
Totally Enclosed Fan Cooled (TEFC)
Fan Voltage
115/208-230V AC
Motor Horsepower
1/3 hp
Flange Depth
1 1/4 in
Motor Speed
1,625 RPM
For Cut-Out Height
27 in
Nameplate Voltage
115V AC
For Cut-Out Width
27 in
Noise Level @ 0.000 in SP @ 5 ft
21 sones
For Maximum Wall Thickness
6 in
Noise Level @ 0.100 in SP @ 5 ft
21 sones
For Minimum Wall Thickness
6 in
Nominal Voltage
115V AC
For Use With
General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan
Number of Fans
1
Full Load Current
6.6 A
Square Opening Required
20-1/2 to 30 in
Guard Finish
Chrome
Supply Airflow @ 0.000 in SP
5,500 cfm
Guard Type
Intake
Vent Design
Ductless
Includes
EPFC Motor Enclosure, Explosion Proof Motor, Shutter, Wire Guard
Ventilation Type
Exhaust
Manufacturer Warranty Length
1 yr
Venturi Depth
5/8 in
Maximum Airflow
5,500 cfm
Venturi Diameter
1/8 in

Product Description

Vertical-mount fan requires little maintenance and is easy to install. Features a totally enclosed, ball bearing motor with thermal overload protection. The fan blades are constructed of well-balanced, heavy-gauge aluminum. Designed with a rugged steel welded box housing that has a durable, powder-coated finish. The aluminum louver shutters are supported by long life nylon bushings. Heavy wire chrome-plated OSHA guards provide protection on intake side of fan. Shipped assembled.
