CLE-LINE

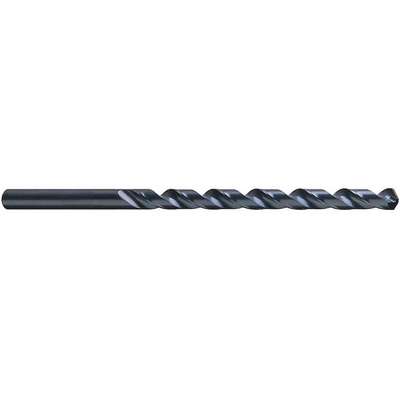

Extra Long Jobber Length Drill Bit, Drill Bit Size 1/4", Overall Length 12", High Speed Steel

Hover over image to magnify
Extra Long Drill Bit,Rh,Hss,1/
Extra Long Drill Bit,Rh,Hss,1/
Extra Long Jobber Length Drill Bit, Drill Bit Size 1/4", Overall Length 12", High Speed Steel Video

#924179-5 | Pkg Qty: 1

$29.60 pkg | $29.60 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CLE-LINE
Helix Angle
21 to 34
Coolant Through
Non-Coolant Through
Item
Extra Long Drill Bit
Cutting Direction
Right
List Number
1806
Decimal Equivalent
1/4
Maximum Drilling Depth
1 in.
Depth x Diameter Ratio
7xD
Mfr. Part Number
C20444
Dimension Type
Fractional Inch
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Overall Length
12 in.
Drill Bit Finish
Black Oxide
Package Quantity
1
Drill Bit Material
High Speed Steel
Point Angle
118 deg.
Drill Bit Point Angle
118 deg.
Point Type
Notched Point
Drill Bit Size
1/4 in.
Series
1806
Drill Letter Size
V
Shank Diameter
1/4 in.
Drill Point Length
0.0751 in.
Shank Length
3 in.
Finish
Black Oxide
Shank Type
Straight
Flute Length
9 in.
Shipping Weight
.1 lb.
Flute Type
Spiral
Spiral Direction
Right Hand
Grade
General Purpose
General
Application
For Carbon Steel, Alloy Steel, Cast Iron
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, P
Drill Bit Point Type
Notched Point
Shank Dia.
1/4 in
Drill Diameter Tolerance
+0.0000 in /-0.0007 in
Shank Type - Machining
Straight
Drill Length Class
Extra Long
Standards
ASME
Finish - Machining
Black Oxide

Product Description

The black-oxide finish on these bits retains lubricants to improve their wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece. These drill bits do not have coolant holes, so a separate hose is required to bring coolant to the bits' tip if it is needed.
