GROZ

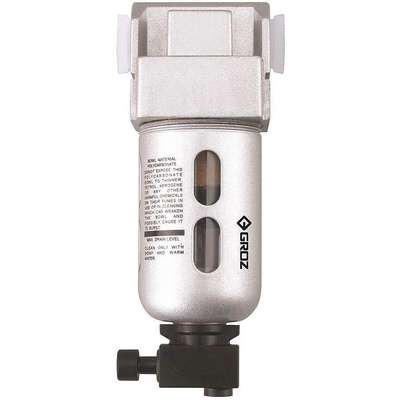

Compressed Air Filter: Particulate, 1/4 in NPT, 40 micron, 28 cfm, 145 psi Max Op Pressure
Hover over image to magnify
#924141-2 | Pkg Qty: 1
$24.37 pkg | $24.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Maximum Temperature
140 deg. F
Bowl Material
Polycarbonate with Guard
Mfr. Part Number
F13913-S
Brand
GROZ
Overall Height
4.45 in.
Drain Type
Semi Automatic
Overall Width
1.57 in.
Filter Rating
40 micron
Package Quantity
1
Housing Material
Aluminum
Pipe Size
1/4 in. NPT
Item
Compressed Air Filter
Product Size
Miniature
Maximum Flow
28 cfm
Replaces
Dynaflo 0425923, Jupiter 42007807
Maximum Pressure
145 psi
Shipping Weight
.54 lb.
General
Air Flow Direction
Left to Right
Filter Media
Compressed Air
Air Inlet Gender
Female
Filter Rating - Air Treatment
40 micron
Air Inlet Type
NPT
For Fluid Type
Compressed Air
Air Outlet Gender
Female
For Removal Of
Dirt, Dust, Moisture
Air Outlet Size
1/4 in
For Substance Type
Air
Air Outlet Type
NPT
Includes
(1) Filter
Bowl Material - Air Treatment
Polycarbonate with Guard
Max. Flow - Air Treatment
28 cfm
Bowl Size - Air Treatment
0.3 oz
Max. Flow Range - Air Treatment
21 to 30 cfm
Connection Size - Air Treatment
1/4 in NPT
Max. Incoming Pressure - Air Treatment
145 psi
Drain Part Compatibility
SC2004
Maximum Flow @ 100 psi
28 cfm
Filter Bowl Capacity
0.3 oz
Minimum Operating Pressure
7 psi
Filter Bowl Guard Included
Yes
Modular Connection
Modular Connection
Filter Bowl Guard Material
Steel
Pressure Drop
4.5 psi
Filter Bowl Material
Plastic
Size - Air Treatment
Subcompact
Filter Element Material
Bronze
System Location
Air Line
Product Description
Helps separate dirt, dust, and moisture from compressed air and features a built-in nighttime drain that automatically operates once the main air line is turned off. Bronze filter element provides long service life.
