TACO

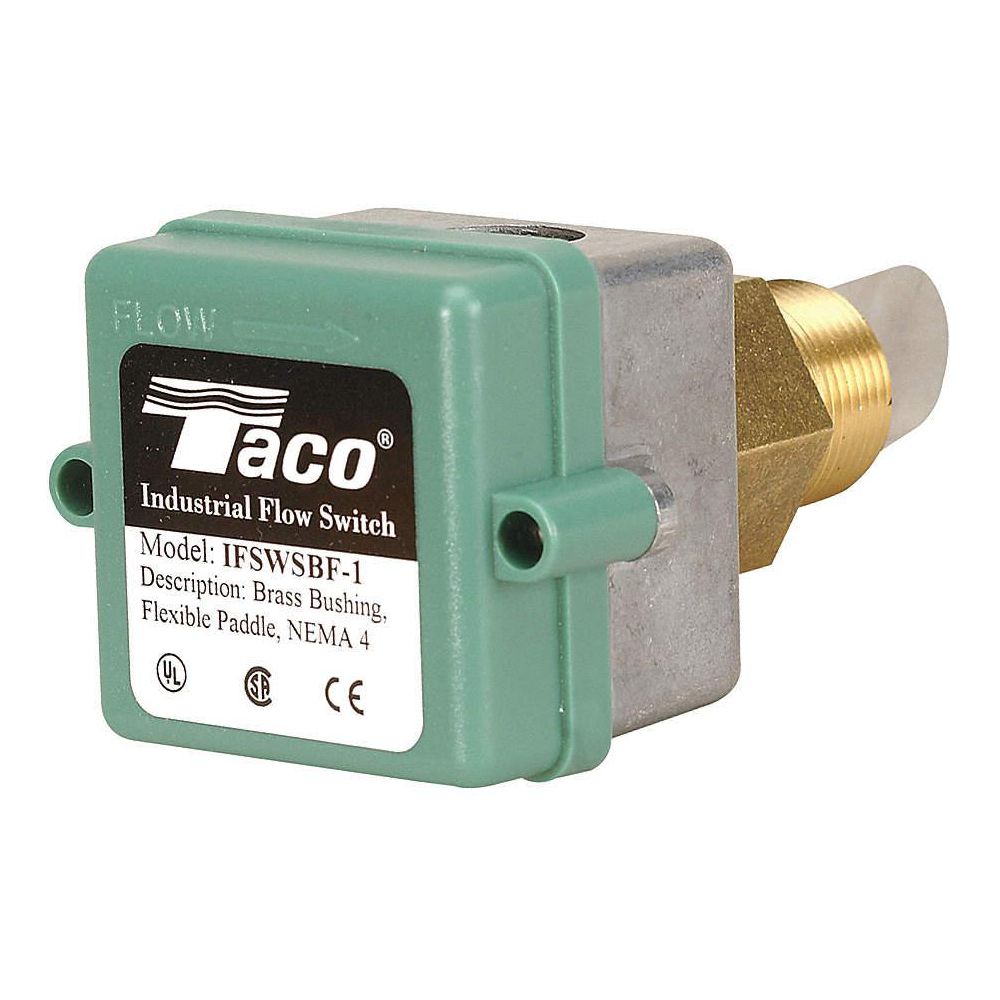

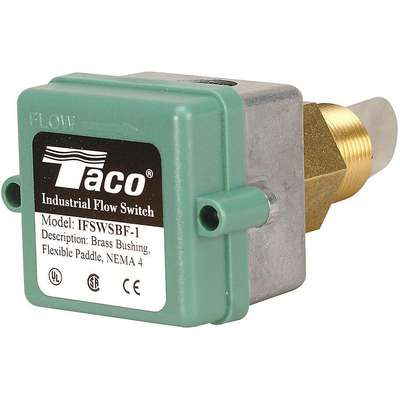

1 Industrial Flow Switch, Flow Increase 4.5 to 9.5 gpm, Flow Decrease 3.5 to 7 gpm

Hover over image to magnify
Flow Switch, 3.5 To 600 Fpm,
Flow Switch, 3.5 To 600 Fpm,

#924118-6 | Pkg Qty: 1

$243.80 pkg | $243.80 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body Material
Brass
Maximum Pressure
250 psi
Brand
TACO
Mfr. Part Number
IFSWSBF-1
Compliance
UL, CSA, CE
Mfr. Warranty Length
1 yr.
Connection Size
1
Package Quantity
1
Contact Rating
10 A at 125/250
Phase
1
Hz
60
Shipping Weight
1.48 lb.
Item
Flow Switch
Switch Type
SPDT
Material of Construction
Brass, Stainless Steel, EPDM, Fluorosilicone
Type
Industrial
Maximum Flow (GPM)
1500
Voltage
24/125/250
Maximum Fluid Temperature (Deg. F)
250°
Wetted Materials
Brass, Stainless Steel, EPDM, Fluorosilicone
General
Application
This Switch Can Serve As A Way to Start and Stop Electrically Operated Equipment When A Flow or No-Flow Condition Occurs in A Variety of Applications
Min. Fluid Temp. (F)
-20 Degrees F
Max. Ambient Temp. (F)
151 Degrees F
Minimum Ambient Temperature
32 deg. F
Max. Flow GPM
1,500 gpm
Minimum Flow Rate (GPM)
4.5
Max. Fluid Temp. (F)
250 Degrees F
Minimum Fluid Temperature
-20°
Max. Operating Velocity (FPM)
600 fpm
Operating Velocity Range
3.5 to 600 fpm
Maximum Operating Velocity
600 fpm
Operating Velocity Range (FPM)
3.5 to 600
Min. Ambient Temp. (F)
32 Degrees
Switch Enclosure
NEMA 4

Product Description

Designed to start or stop electronically-operated equipment when a flow or no flow condition occurs, this TACO industrial flow switch is compatible with water and most nonhazardous fluids not harmful to brass, EPDM, and stainless steel. Suitable for use in a number of applications including chillers, domestic water boosters, heating systems, low mass boilers, process work, and water systems. 3-yr. limited manufacturer’s warranty.
