HEDLAND

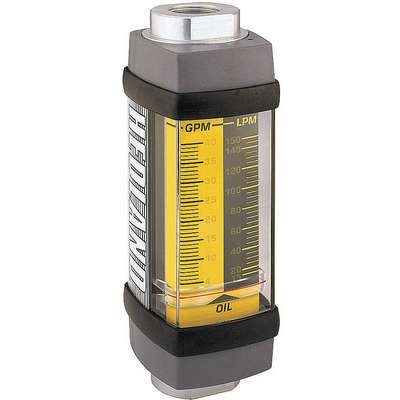

Mechanical Flowmeter: 1 1/4 in Connection Size, FNPT, Petroleum Fluids, 10 to 150 gpm
Hover over image to magnify
#924110-3 | Pkg Qty: 1
$1,483.95 pkg | $1,483.95 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
HEDLAND
Maximum Temperature (Deg. F)
240
Chamber Material
Aluminum
Maximum Viscosity
500 SSU
Connection Size
1-1/4 in.
Mfr. Part Number
H801A-150
Connection Type
FNPT
Package Quantity
1
Flow Material
Petroleum Fluids
Pressure Drop - 100% Flow
27.50 psi
Flow Range
10 to 150 gpm
Pressure Drop - 50% Flow
10.50 psi
Flowmeter Group
Mechanical Flowmeter
Seal Material
Viton
For Pipe Size
1-1/4 in.
Shipping Weight
7.75 lb.
Height
4-11/16 in.
Specific Gravity
0.876
Housing Material
Aluminum
Type
Variable Area
Item
Mechanical Flowmeter
Wetted Materials
Aluminum
Length
12-3/16 in.
Width
4-3/8 in.
Maximum Pressure
3500 psi
General
Accuracy (%)
+/-2% Full Scale
Pressure Drop - 100% Flow (PSI)
27.5 psi
Flowmeter Product Group
Mechanical Flowmeter
Pressure Drop - 50% Flow (PSI)
10.5 psi
Product Description
Aluminum Oil Flowmeters
- Max. pressure: 3500 psi Max. temperature: 240°F Accuracy: ±2%, except where noted Specific gravity: 0.876 Viton® seals
- Have a direct-reading 360° rotatable scale and guard. Install in any position without sacrificing accuracy.
Item Barcode
Flowmeter,Gpm/Lpm 10 - 150 /
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4NND8 | Flowmeter, GPM/LPM 10 - |
 | UNSPSC CODES | 41112501 | |
 | VMRS (ATA) CODES | 053-006-009 | Flowmeter, GPM/LPM 10 - |
