PARKER

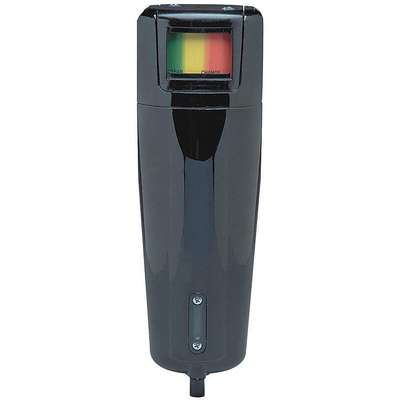

Pneumatic Oil Filter: 1/4 in NPT, 0.01 micron, 35 cfm, 250 psi Max Op Pressure, 130°F Max Op Temp

Hover over image to magnify
Pneumatic Oil Filter,1/4" Npt,
Pneumatic Oil Filter,1/4" Npt,

#924095-2 | Pkg Qty: 1

$477.56 pkg | $477.56 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Consumption
scfm
Mfr. Part Number
8002N-0A0-SA
Bowl Material
Anodized Aluminum
Microns
99.9999+ @ 0.01
Brand
PARKER
NPT
1/4 in.
Drain Type
Automatic
Overall Height
8-1/2 in.
Filter Rating
0.01 Microns
Overall Width
3.3 in.
Item
Pneumatic Oil Filter
Package Quantity
1
Maximum Flow
35 cfm
Pipe Size
1/4 in. NPT
Maximum Flow (CFM)
35 CFM
Product Size
Miniature
Maximum Pressure
250 psi
Shipping Weight
2.2 lb.
Maximum Temperature
130 deg. F
Type
Modular
Maximum Temperature (Deg. F)
130
Width
3.3 in.
General
Air Inlet Type
NPT
For Removal Of
Oil
Air Outlet Size
1/4 in
Includes
High Efficiency Coalescing Filter
Air Outlet Type
NPT
Max. Flow - Air Treatment
35 cfm
Bowl Material - Air Treatment
Aluminum
Max. Flow Range - Air Treatment
31 to 40 cfm
Connection Size - Air Treatment
1/4 in NPT
Max. Incoming Pressure - Air Treatment
250 psi
Filter Bowl Material
Aluminum
Sight Glass
Yes
Filter Rating - Air Treatment
0.01 micron
Size - Air Treatment
Subcompact

Product Description

This final-stage sterile air grade filter removes all viable organisms and complies with all USDA, FDA, and GFSI requirements. This sterile air filter does not require a drain.

Item Barcode
9240952
Pneumatic Oil Filter,1/4" Npt,
 NameItemDescription
Grainger DropshipGrainger Dropship4HER1Pneumatic Oil Filter,1/
UNSPSC CODESUNSPSC CODES40161511
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Pneumatic Oil Filter,1/
