Home All Products Electrical Plugs & Connectors Straight Blade Plugs SKU: 924088-6
Share
Print
HUBBELL WIRING DEVICE-KELLEMS

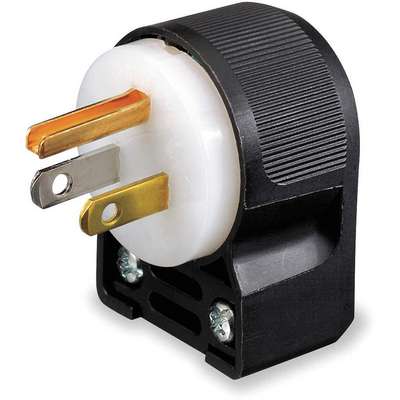

Hubbell Wiring Device-Kellems 15A Industrial Grade Angle Straight Blade Plug, Black/White; NEMA Configuration: 5-15P

Hover over image to magnify
Angle Plug,5-15P,15A,125V
PI_Asset_1982269
Angle Plug,5-15P,15A,125V
PI_Asset_1982269
Double tap image to magnify
Angle Plug,5-15P,15A,125V
6A665_1
Angle Plug,5-15P,15A,125V
6A665_1

#924088-6Pkg Qty: 1

$36.20 pkg | $36.20 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Amps
15 A
Maximum Wire Size
10 AWG
Antimicrobial
No
Mfr. Part Number
HBL5266CA
Body Length
1.53 in.
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Color Family
Black / White
NEMA Configuration - Plugs & Connectors
5-15
Connection Orientation
Angled
Number of Blades
3
Cord Size
0.325 in. to 0.655 in.
Number of Poles
2
Corrosion Resistant
Yes
Number of Wires
3
Current Rating
15 A
Package Quantity
1
Description
Insulgrip, Grounding
Phase
Single
Grade
Industrial
Polarized
Yes
Grounding
Grounded
Shipping Weight
.15 lb.
Horsepower
1/2 hp
Standards
CSA Certified C22.2 No. 42 File 280, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E1706
Housing Material
Polycarbonate
Sub-Category
Plugs
IP Rating
IP20
Type
Insulgrip
Insulation Material
Nylon
UL 94 Flammability Rating
HB
Item
Angle Straight Blade Plug
Voltage
125V AC
Material
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
HP
0.5
Phase - Plugs and Receptacles
1
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Sub-Category
Plugs

Product Description

Insulgrip® plug has a tough, ribbed nylon housing that withstands heavy abuse and holds securely without slippage. Powerful Vari-size® cord grip adjusts to a wide range of cord sizes, 10/3 SO to 18/3 SJ. "Picture Window" wiring gives visual assurance that conductors are inserted and terminated correctly.
