CARLING TECHNOLOGIES

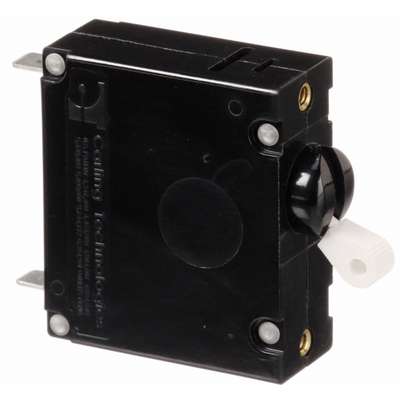

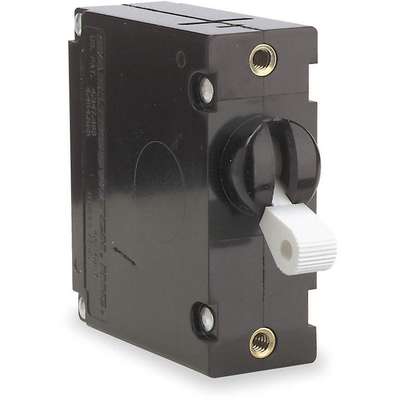

Carling Technologies Circuit Breaker, Magnetic Circuit Breaker Type, Toggle Switch Type, Number of Poles: 1
Hover over image to magnify
#924065-6 | Pkg Qty: 1
$20.40 pkg | $20.40 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Voltage Rating
277VAC
Length
2 in.
Actuator Color
White
Maximum Air Rating
Not Rated
Air @ 120 VAC
Not Rated
Maximum DC Voltage
80
Air @ 125 VDC
Not Rated
Maximum Wire Size
Not Specified
Air @ 240 VAC
1.5kA
Mfr. Part Number
BA1-BO-34-630-111-C
Air @ 277 VAC
Not Rated
Mounting Type
Threaded Insert
Air @ 65 VDC
7.5kA
Number of Poles
1
Amperage
30 A
Package Quantity
1
Amps
30 A
Phase
Single
Brand
CARLING TECHNOLOGIES
Shipping Weight
.1 lb.
Circuit Breaker Type
Magnetic
Switch Type
Toggle
Curve Type
Medium
Terminal Connection
1/4 in. Tab
DC Voltage Rating
80VDC
Type
Free Standing
Depth
2.12 in.
Voltage
277
Item
Panel Mount Circuit Breaker
Width
3/4 in.
General
AIR @ 240VAC
1.5KA
Max. Operating Temp.
185°F
AIR @ 65VDC
7.5KA
Min. Operating Temp.
-40°F
Actuator Legend
I/O, On/Off
Panel Cutout Size
2.187 in x 0.770 in
Circuit Breaker Actuator
Toggle
Standards
UL Recognized/CSA Accepted
Product Description
Panel-Mount Circuit Breakers
- Magnetic Trip
- Functionally equal: Heinemann, Sensata, Airpax, and Potter & Brumfield
- Designed for world market applications requiring extra insulation and tongue/groove half-shell construction. Series trip design. Trip point is not affected by temperature fluctuations. UL Recognized and CSA Certified.
Expertly Selected Product Pairings
Item Barcode
Circuit Breaker,Magnetic,30A,2.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3XC65 | Circuit Breaker, |
 | UNSPSC CODES | 39121602 | |
 | VMRS (ATA) CODES | 053-006-041 |
