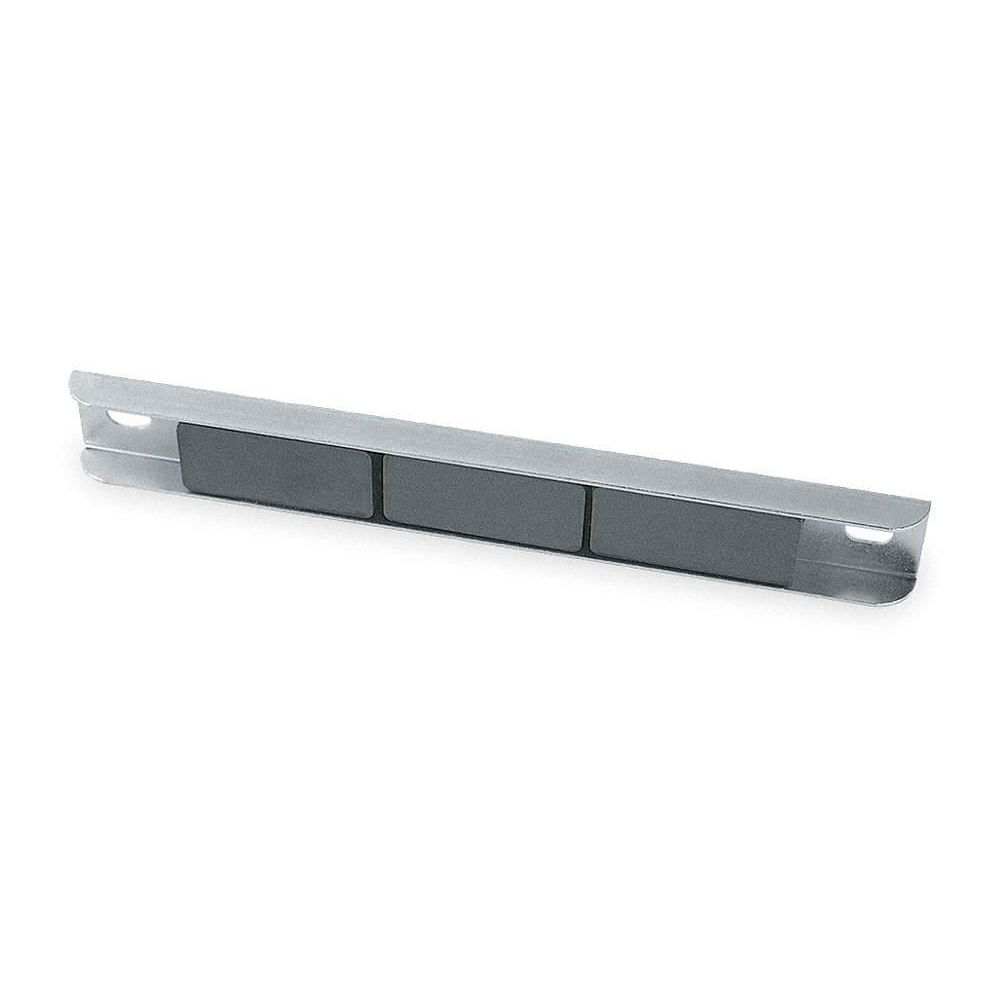

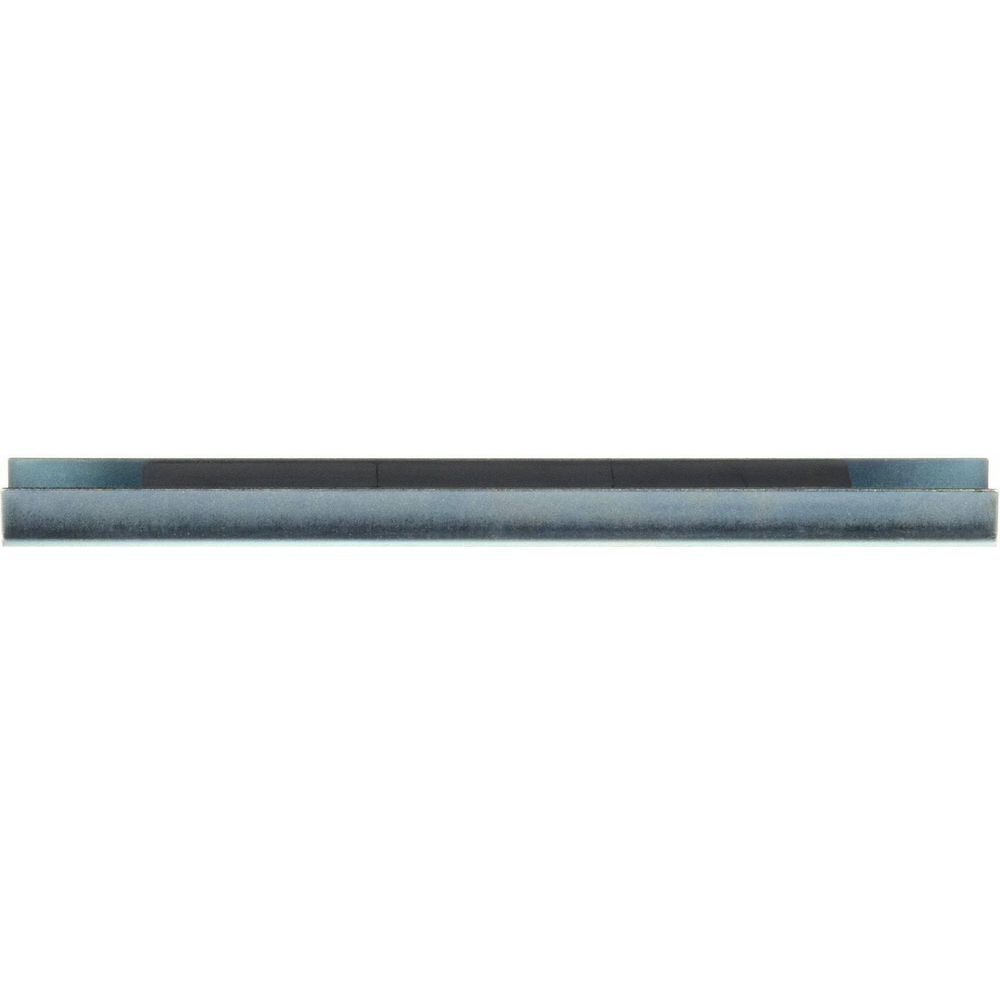

Encased Channel Magnet, 8" Overall Length, 1-1/16" Overall Width, 25 lb. Max. Pull, 0.500" Thickness

Hover over image to magnify
Channel Magnet,25 Lb. Pull
PI_Asset_948822
Channel Magnet,25 Lb. Pull
PI_Asset_948822

#924062-8 | Pkg Qty: 1

$11.03 pkg | $11.03 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Package Quantity
1
Item
Encased Channel Magnet
Shipping Weight
.6 lb.
Mfr. Part Number
3DYC2
General
Casing Material
Nickel Plating
Max. Pull
25 lb
Height (In.)
0.5
Max. Pull (Lb.)
25
Hole Dia.
9/32 in
Size (Oz.)
8.5
Length (In.)
8
Stability Temp.
32° to 180°F
Magnet Style
Encased Channel Magnet
Stability Temp. (Deg. F)
32 to 180
Magnet Style
Encased Channel Magnet
Width (In.)
1-1/10

Product Description

This magnet will lift, suspend, hold, and retrieve metal objects up to 100 times its own weight.

Item Barcode
9240628
Channel Magnet,25 Lb. Pull
 NameItemDescription
Grainger DropshipGrainger Dropship3DYC2Channel Magnet,25 lb.
UNSPSC CODESUNSPSC CODES27112109
VMRS (ATA) CODESVMRS (ATA) CODES053-006-467
