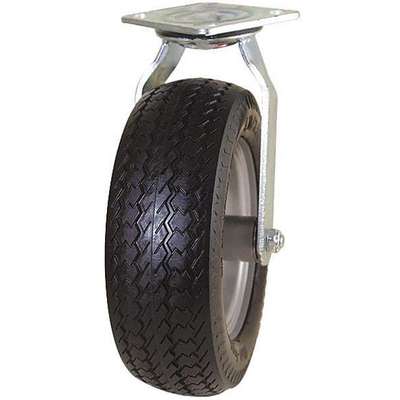

Marastar Light- Medium Duty, Swivel Plate Caster with Flat-Free Wheels; 300 lb. Load Rating, 10" Wheel Dia.

Hover over image to magnify
Flat Free Swivel Caster,10-1/4
PI_Asset_1356019
Flat Free Swivel Caster,10-1/4
PI_Asset_1356019

#924058 | Pkg Qty: 1

$40.94 pkg | $40.94 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
MARASTAR
Load Rating
300 lb.
Caster Brake Included
No
Mfr. Part Number
#00302
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
3/8 in.
Caster Load Rating Range
Light- Medium Duty
Mounting Height
11-7/8 in.
Caster Plate Hole Pattern
B
Non-Marking
Yes
Caster Plate Size
4 in. x 4-1/2 in.
Number of Mounting Holes
4
Caster Raceway
Single Ball
Number of Wheels
1
Caster Wheel Bearings
Precision Ball
Outside Bolt Hole Spacing
2-3/4 in. x 3-5/8 in.
Caster Wheel/Tread Material
Polyurethane
Package Quantity
1
Caster/Wheel Tread
Sawtooth
Plate Caster Sub-Type
Swivel
Durometer
70-80 Shore A
Shipping Weight
8 lb.
Frame Finish
Zinc Plated
Swivel Construction
Kingpinless
Frame Material
Steel
Wheel Color
Black
Includes Thread Guards
Yes
Wheel Diameter
10 in.
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel Width
3-1/4 in.
Item
Plate Caster with Flat-Free Wheels
Wheel/Tread Hardness Rating
Soft
General
Brake Type
No Brake Included
Mounting Plate Size
4 in x 4-1/2 in
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4-1/2 in (B)
Caster Mounting Type
Plate
Operating Temperature Range
0° to 100°F
Caster Product Group
Swivel Caster
Raceway
Single Ball
Caster Temp. Range Available
Yes
Swivel Raceway Type
Single Ball
Hub Materials
Steel
Tire Rim Dia.
6 13/32 in
Hub Position
Centered
Tire Thickness
2 61/64 in
Hub Width
3-31/32"
Wheel Bearing Type
Precision Ball
Load Rating Range
300 to 999 lb
Wheel Dia.
10 in
Mounting Bolt Dia.
3/8 in
Wheel/Tread Hardness
70-80 Shore A
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Material
Polyurethane

Product Description

These medium-duty plate casters have flat-free wheels that absorb shock and vibration for a cushioned ride and will not go flat if punctured. The casters' solid flat-free wheels are heavier than pneumatic or semipneumatic wheels, and they absorb more shock than semipneumatic wheels. Medium-duty plate casters with flat-free wheels are suitable for rolling over rough or uneven terrain in areas that may contain sharp debris such as nails, metal shavings, or rocks. They can be used on carts, trucks, and similar equipment in locations such as warehouses, transportation facilities, lawn and garden centers, and hospitality sites.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
