BURNDY
Burndy Grounding Connector: Aluminum, 6 AWG to 250 kcmil STR/6 to 4/0 AWG SOL Grounding Wire Size, GC22A
#924032-4 | Pkg Qty: 1
$99.99 pkg | $99.99 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Aluminum
Mfr. Part Number
GC22A
Brand
BURNDY
Minimum Conductor Size
6 AWG
Conductor Size
250 kcmil to 6 AWG
Number of Wires
1
Description/Special Features
Hex Socket Steel Screw
Overall Length
6-5/16 in.
Grounding Connector Material
Aluminum
Overall Width
1 in.
Grounding Wires Connected To
2-1/2 in. to 4 in. Pipe
Package Quantity
1
Item
Grounding Connector
Rod Diameter
2-1/2 in. to 4 in. Pipe
Length
6.31 in.
Shipping Weight
.9 lb.
Material
Aluminum
Type
Commercial
Material of Construction
Aluminum
Wire Size
6 AWG to 250 kcmil STR, 6 to 4/0 AWG SOL
Maximum Conductor Size
250 kcmil
General
For Maximum Ground Conductor Wire Size
250 kcmil
Grounding Wire Size
6 AWG to 250 kcmil STR, 6 to 4/0 AWG SOL
For Maximum Pipe Size
4 in
Number of Wires - Grounding
1
For Minimum Ground Conductor Wire Size
6 AWG
Torque
240 lb-in
For Minimum Pipe Size
2 1/2 in
Type - Grounding Connector
Mechanical
For Use With
Aluminum Conductor, Conduit, Copper Conductor, Pipe, Water Pipe
Product Description

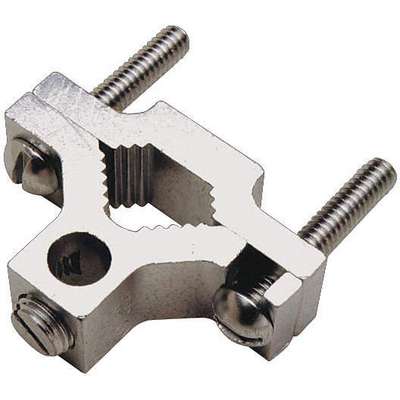

The BURNDY® pipe ground clamp is a mechanical grounding connector for cable to water pipe. 2-1/2" to 4" pipe.
