RICE LAKE

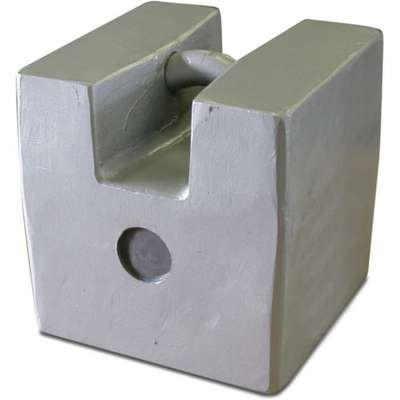

Rice Lake 250 lb. Calibration Weight, Grip Handle Style, Class 6, Traceable - Accredited, Cast Iron

Hover over image to magnify
Calibration Weight (w/Cert),
Calibration Weight (w/Cert),

#923313-7 | Pkg Qty: 1

$2,380.77 pkg | $2,380.77 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
RICE LAKE
Mfr. Part Number
12892TR
Calibration Certificate
Traceable - Accredited
Nominal Mass
250 lb.
Calibration Weight Material
Cast Iron
Number of Pieces
1
Calibration Weight Style
Grip Handle
Overall Height
12 in.
Class
F
Overall Length
9-3/4 in.
Compliance
NIST
Overall Width
9-3/4 in.
Finish
Painted
Package Quantity
1
Item
Calibration Weight
Shipping Weight
250 lb.
Material
Cast Iron
Style
Grip Handle
Measurement Type
Avoirdupois
Subgroup | Calibration Weight
Calibration Weights
General
Calibration Tolerance
11.4 g
Calibration Weight Compliance Agency
ASTM
Calibration Weight Class
6

Product Description

Use the Rice Lake Weighing Systems® cast iron grip handle calibration weight for routine calibration of scales or verification checks. Painted weight has an adjustable sealing cavity. Typical application is field standard for testing industrial weighing devices. Class F weight includes CA documentation (statement of accuracy is a statement of the class of weight). These cast iron weights undergo a phosphatizing process in which the metal is thoroughly cleaned and mildly etched to allow finish adhesion. The weights are then coated with a layer of chip-resistant paint which conforms to NIST Handbook 105-1 standards. This 2-step process ensures a long-lasting finish helps to reduce corrosion.

  • Nominal value marked on weight
  • Weight capacities of 10 kg/20 lbs. and up meet NIST Handbook 105-1 and Handbook 44 specifications
  • Metric weights designated by gold paint
  • Avoirdupois weights (lbs.) designated by silver paint
  • Serial numbers may be stamped on weights

Classes Available:

  • NIST Class F
  • ASTM Class 6 and 7
  • OIML Class M1 and M2

Applications Include:

  • Field standards for testing industrial devices Class III, Class IIlL, or IIII
  • Testing for nonmarked scales without Class designation
  • Verifying scales are within specified accuracy and tolerances
