HUBBELL WIRING DEVICE-KELLEMS

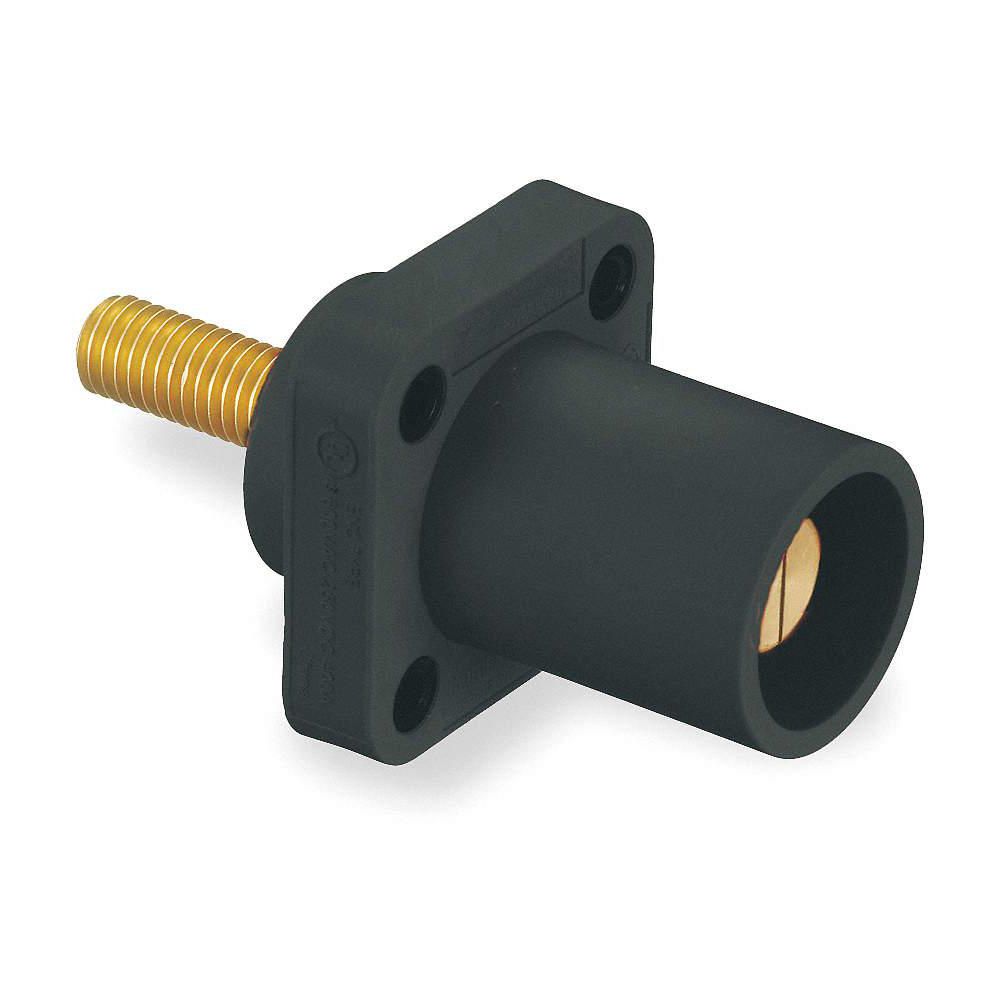

Hubbell Wiring Device-Kellems Receptacle, 12K, 3R, 4X NEMA Rating, 16, 400AC/DC Amps AC/DC, Taper Nose

Hover over image to magnify
Receptacle,3R, 4X, 12K,Stud,
PI_Asset_1983349
Receptacle,3R, 4X, 12K,Stud,
PI_Asset_1983349
Double tap image to magnify
Receptacle,3R, 4X, 12K,Stud,
2XB69_1
Receptacle,3R, 4X, 12K,Stud,
2XB69_1

#923191-3Pkg Qty: 1

$68.05 pkg | $68.05 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Amps AC
400
Mfr. Part Number
HBLMRSBK
Amps AC/DC
400AC/DC
Minimum Wire Size
4 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
Mounting
Panel
Cable Range
N/A
Mounting Location
Panel
Color Family
Black
Mounting Style
Through Hole Mounting
Compatible With
16
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Overall Width
2.2 in.
Connection Orientation
Straight
Package Quantity
1
Contact Material
Brass
Phase
Single
Current Rating
400 A
Receptacle Gender
For Female Connectors
End Type
Taper Nose
Series
16
Housing Color
Black
Shipping Weight
.55 lb.
Housing Material
Thermoplastic Elastomer
Single Pole Device Style
Taper Nose
Item
Receptacle
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Male/Female
Male
Terminal Connection
Threaded Stud
Material
Thermoplastic Elastomer
Type
Single Pole Device
Material of Construction
Thermoplastic Elastomer
UL 94 Flammability Rating
HB
Maximum Wire Size
4/0 AWG
Voltage Rating
250V DC, 600V AC
General
Compatible with Series
16
Overall Length
4.1 in
Gender
Male
Terminal Connection Type
Double Set Screw

Product Description

The nonmetallic retaining screw on this single pole connector is designed to lock contacts in place so they don't move within the housing. A special screw thread also helps prevent installation 180° out of rotation and requires fewer turns, reducing the chance of a conductive screw being substituted in its place. A large, raised alignment arrow helps ease mating of devices.
