TSURUMI

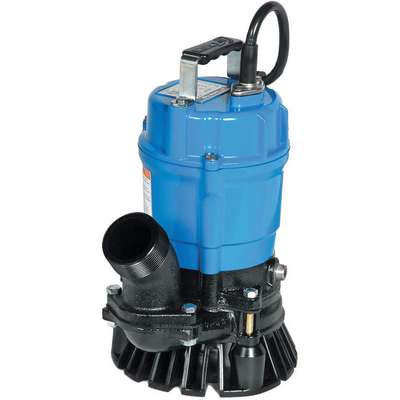

1 HP Construction Site/Residential Dewatering Pump with 120VAC Voltage and Discharge NPT 3", 32 ft.

Hover over image to magnify
Submersible Trash Pump,1 Hp,
Submersible Trash Pump,1 Hp,

#923132-3 | Pkg Qty: 1

$1,079.23 pkg | $1,079.23 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
Etl/Cetl
Insulation Class
E
Amps
9.6 A
Item
Construction Site/Residential Dewatering Pump
Base Material
PVC
Length
15-1/4 in.
Bearing Type
Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
Maximum Diameter Solids
1/4 in.
Brand
TSURUMI
Maximum Head
62 ft.
Cord Length
32 ft.
Maximum Liquid Temperature
104°F
Cord Size
14/3
Mfr. Part Number
HS3.75S-62 (115V)
Cord Type
3-Conductor STOW, Resists Water and Oil
Mfr. Warranty Length
2 yr.
Diameter
12-7/16 in.
Minimum Sump Pit Diameter
20 in.
Discharge NPT
3 in.
Motor Housing
Die Cast Aluminum
Duty
Continuous
Motor RPM
3408
Function
Dewatering
Motor Type
PSC
GPM @ 1 Ft. of Head
60
Package Quantity
1
GPM of Water @ 10 Ft. of Head
60
Phase
1
GPM of Water @ 15 Ft. of Head
59
Pump HP
1
GPM of Water @ 20 Ft. of Head
55
Pump RPM
3408
GPM of Water @ 25 Ft. of Head
51
Pump Type
Construction Site and Residential Dewatering
GPM of Water @ 30 Ft. of Head
46
RPM
3408
GPM of Water @ 35 Ft. of Head
41
Shaft Material
Stainless Steel
GPM of Water @ 40 Ft. of Head
35
Shaft Seal
Silicone Carbide
GPM of Water @ 45 Ft. of Head
27
Shaft Seal Material
Silicone Carbide
GPM of Water @ 5 Ft. of Head
60
Shipping Weight
49 lb.
Handle
Top Carrying
Suction
Screened Bottom
Height
15-1/4 in.
Switch Type
No Switch Included
Horsepower
1
Thermal Protection
Automatic
Housing
Die Cast Aluminum
Top Material
Die Cast Aluminum
Housing Material
Die Cast Aluminum
Type
Construction Site and Residential Dewatering
Hz
60
Voltage
120 VAC
Impeller Material
Urethane Rubber
Warranty
2 Years
Input Phase AC
1
Width
12-7/16 in.
General
Application
Nonflammable Liquids
HP
1
Body Dia.
12 7/16 in
Max. Liquid Temp.
104 Degrees F
Discharge Dia.
3 in
Min. Sump Pit Dia.
20 in
Discharge Gender
Male
Minimum Water Depth
20 in
Discharge Standard
NPT
Nominal Voltage
110V AC
Features
Dewatering
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
60 gpm
Rated Voltage
115V AC
Flow Rate @ 15 Ft. of Head
59 gpm
Shaft Seal Material - Pumps
Silicone Carbide
Flow Rate @ 20 Ft. of Head
55 gpm
Switch Actuation
No Switch Included
Flow Rate @ 5 Ft. of Head
60 gpm
Width at Widest Point
12 7/16 in
For Use With
Nonflammable Liquids

Product Description

These 110 to 120V plug-in utility and dewatering pumps transfer moderate amounts of water on jobsites and accept an inlet hose so they don't have to be placed in the water that needs to be drained. Some pumps come with a switch for automatic on/off operation, while other models allow installation of an automatic switch. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
