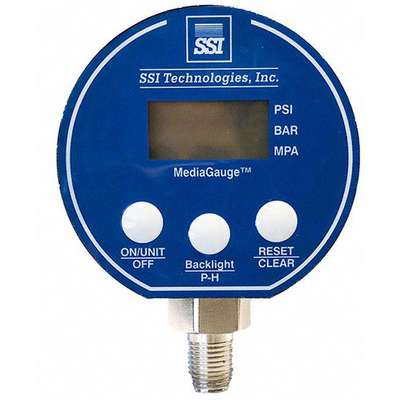

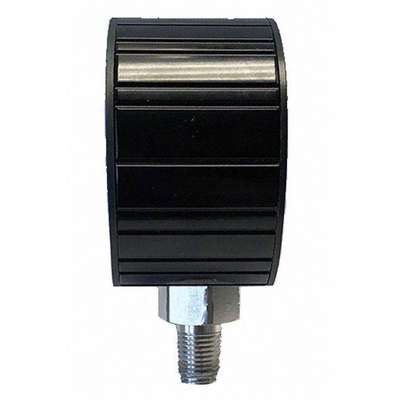

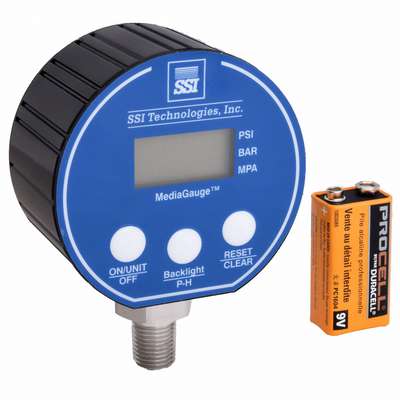

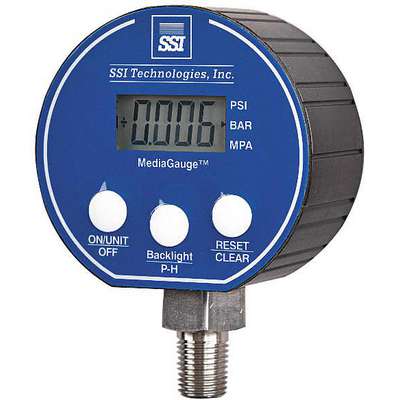

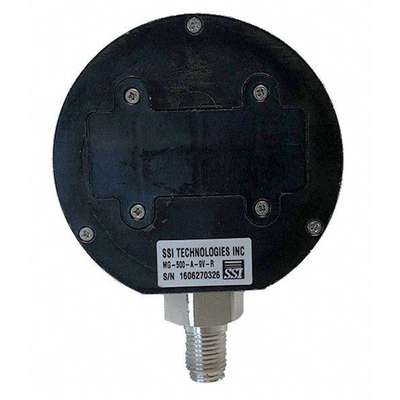

SSI MG-500-A-9V-R Digital Test Pressure Gauge: 0 to 500 psi, 1/4 in NPT Male, Bottom, 3 in Dial, ±0.25% Accuracy

Hover over image to magnify
Digital Pressure Gauge,'500
PI_Asset_1768030
PI_Asset_1768031
PI_Asset_1768032
PI_Asset_1770400
Digital Pressure Gauge,'500
PI_Asset_1768030
PI_Asset_1768031
PI_Asset_1768032
PI_Asset_1770400

#923120-9 | Pkg Qty: 1

$189.04 pkg | $189.04 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Battery Type
9V Battery
Gauge Sensor Material
316L Stainless Steel
Brand
SSI
Gauge Socket Material
304L Stainless Steel
Burst Pressure
15,000 psi
Hazardous Location Rating
Not Rated
Calibration Certificate Included
No
Item
Digital Test Pressure Gauge
Display
LCD
Mfr. Part Number
MG-500-A-9V-R
Gauge Accuracy
±0.25 %
Mfr. Warranty Length
1 yr.
Gauge Application
Food Processing Industry, Hydraulics, Pneumatics
Mounting Type
Stem-Mount
Gauge Case Color
Black
Non-Sparking
No
Gauge Case Material
ABS
Number of Digits
4
Gauge Connection Location
Bottom
Operating Temperature Range
-10 deg. C to 60 deg. C
Gauge Connection Size
1/4 in.
Package Quantity
1
Gauge Connection Type
MNPT
Power Source
Battery
Gauge Nominal Dial Size
3 in.
Pressure Range
0 to 500
Gauge Panel Mountable
No
Series
MG-9V
Gauge Primary Range Units
psi
Shipping Weight
.95 lb.
General
Accuracy Grade
Grade 3A
Includes Batteries
Yes
Accuracy Grade Gauge Type
Test
Languages
English
Auto-Shutoff
Yes
Manufacturer Warranty Length
1 yr
Auto-Shutoff Time
5 min
Nominal Dial Size
3 in
Backlit Screen
Yes
Number of Display Digits
4
Case Depth
44 mm
Peak Hold
Yes
Case Diameter
3 in
Pressure Gauge Type
Test Pressure Gauge
Case Shape
Round
Pressure Range Type
Pressure
Compatible Process Media
Brake Fluid, Diesel, Hydraulic Fluid, Hydrogen, Motor Oil, Nitrogen and Air, Salt Water, Sea Water, Waste Water
Primary Display Range
0 to 500
Digital Gauge Accuracy
+/-0.25% of Reading
Primary Display Units
psi
Digital Gauge Display Units
bar, MPa, psi
Process Connection
1/4 in NPT Male
Digital Pressure and Vacuum Gauge Type
Digital Pressure Gauge
Process Connection Gender
Male
Display Range
0 to 500 psi
Process Connection Location
Bottom
Display Screen Type
LCD
Process Connection Size
1/4 in
Gauge Accuracy Grade
Grade 3A - Test
Process Connection Type
NPT
Gauge Wetted Parts
Stainless Steel
Sensor Material
316L Stainless Steel
IP/NEMA Rating
NEMA 4X
Sensor Type
Diaphragm
Includes
Instructions
Standards
CE Certified, NIST, RoHS

Product Description

Digital Pressure Gauge, 3 in, Basic Gauge Case Material Plastic, Basic Gauge Wetted Parts Stainless Steel, Gauge Connection Type MNPT, Gauge Connection Size 1/4 in, Gauge Connection Location Bottom, Gauge Primary Range Units psi, Gauge Primary Range Values 0 to 500, Digital Gauge Accuracy +/-0.25 Percent of Reading, Display Backlit LCD, Number of Display Digits 4, Socket Material 304L Stainless Steel, Case Material ABS Thermoplastic, Case Color Black, Digital Gauge Display Units bar, MPa, psi
