CLEVELAND

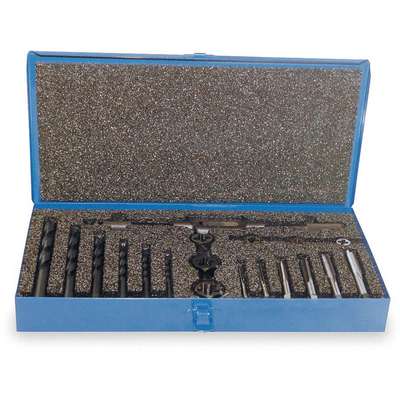

17-Piece High Speed Steel Tap, Die, and Drill Set with M6 to M12 Size Range
Hover over image to magnify
#923119-3 | Pkg Qty: 1
$583.03 pkg | $583.03 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CLEVELAND
SAE or Metric
Metric
Die Material
High Speed Steel
Shipping Weight
5 lb.
Die Shape
Round
Sizes Included
M6x1, M7x1, M8x1.25, M10x1.5, M12x1.75
Dimension Type
Metric
Style
Plug
Drill Bit Finish
Steam Oxide
Tap Chamfer
Plug
Drill Bit Material
High Speed Steel
Tap Dimension Type
Metric
Finish
Mill
Tap Finish
Bright (Uncoated)
Item
Drill Bit, Tap, and Die Set
Tap Material
High Speed Steel
Left/Right Hand
Right Hand
Tap Size
M6 to M12
Material
High Speed Steel
Tap Wrench Number
T10
Mfr. Part Number
C00451
Thread Direction
Right Hand
Number of Pieces
18
Thread Type
Metric Fine
Package Quantity
1
Type
Metric
General
Case Type
Metal
Measurement System
Metric
Die Finish
Bright (Uncoated)
Min. Bore Dia.
5.00 mm
Die Thread Sizes Included
M10x1.50, M12x1.75, M6x1.00, M7x1.00, M8x1.25
Min. Tap Thread Size
M6x1.0
Die Type
Adjustable
Number Of Taps
5
Drill Bit Dia. Included
10.2 mm, 5 mm, 6.7 mm, 6 mm, 8.5 mm
Number of Dies in Set
5
Drill Sizes
10.20 mm, 5.00 mm, 6.00 mm, 6.70 mm, 8.50 mm
Smallest Drill Bit Dia.
5.00 mm
Includes
Tap, Die, and Drill for Each Size, No. 14 Die Stock, No. 333 Tap Wrench, Steel Case with Foam Liner
Smallest Thread Size
M6x1.00
Largest Drill Bit Dia.
10.20 mm
Tap Type
Straight Flute
Largest Thread Size
M12x1.75
Thread Sizes Included
M10x1.50, M12x1.75, M6x1.00, M7x1.00, M8x1.25
Max. Die Thread Size
M12x1.75
Thread Standard
Metric
Max. Tap Thread Size
1-1/4 in
Product Description
These sets contain high-speed steel drill bits, taps, and dies. They provide good wear resistance in general purpose holemaking and threading tasks in a range of materials, including ferrous and nonferrous metals.
