DAYTON

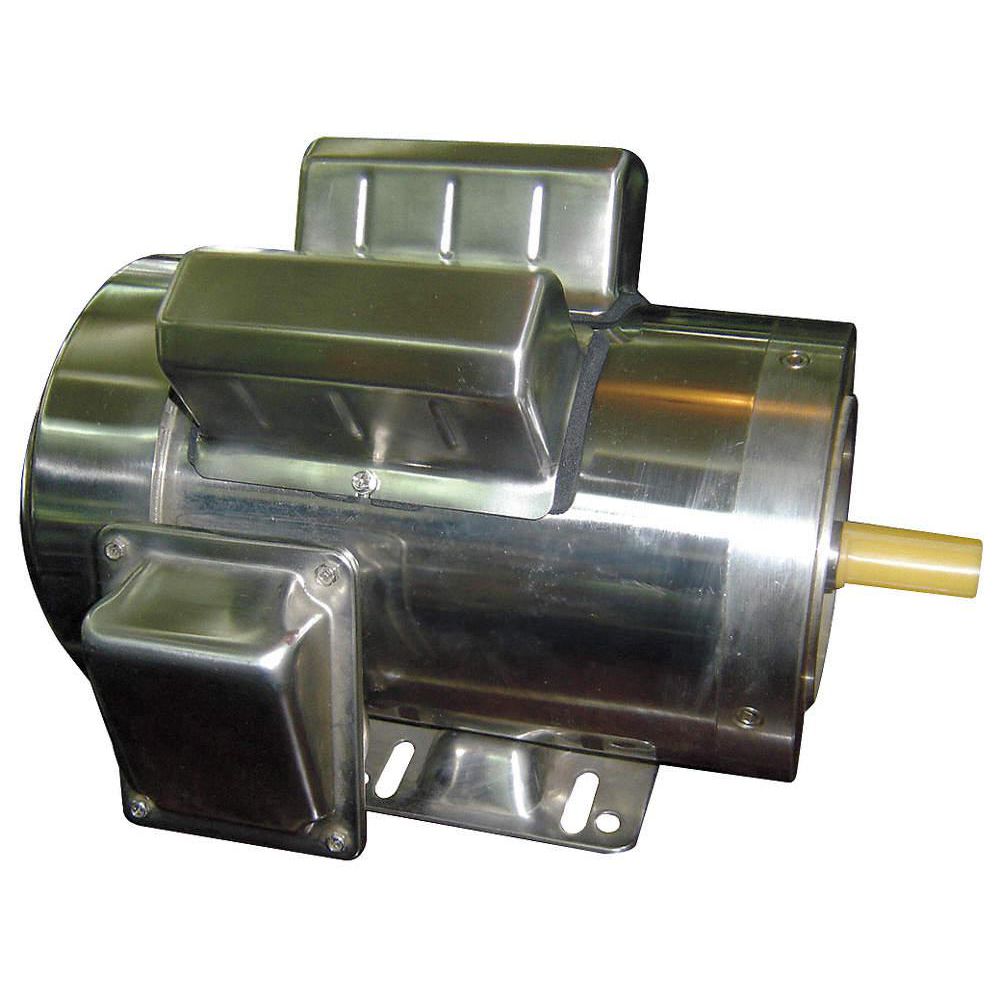

Dayton 1-1/2 HP Washdown Motor,Capacitor-Start/Run,1745 Nameplate RPM,115/208-230 Voltage,Frame 56HC
Hover over image to magnify
#923112-9 | Pkg Qty: 1
$950.95 pkg | $950.95 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Motor Type
Capacitor-Start
Brand
DAYTON
Mounting
Face/Base
Duty
Continuous
NEMA/IEC Frame
56HC
Duty Cycle
Continuous
Nameplate RPM
1745
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
14-3/8 in.
Frame
56HC
Package Quantity
1
Frame Material
Stainless Steel
Phase
Single
Full Load Amps
14.8/7.6-7.4
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
F
Shaft Length
1-7/8 in.
Item
Washdown Motor
Shaft Material
Stainless Steel
Length Less Shaft
12-1/2 in.
Shipping Weight
52.4 lb.
Mfr. Part Number
11G255
Thermal Protection
None
Motor Design
Capacitor-Start/Run
Voltage
115/208-230 VAC
General
Application
Beverage industries, Chemical Processing, Food Processing
Motor Frame Material
Stainless Steel
Body Dia.
6.5 in
Motor Mounting Position
Horizontal
Bolt Circle Dia.
5 7/8 in
Motor Mounting Type
Face/Base
Drain Plugs
12,3,6,9 O'clock on SE and OSE Endshields
Motor Service Factor
1.15
Endshield Material
Stainless Steel
Motor Shaft Design
Keyed
Endshields
Stainless Steel
Motor Shaft Rotation
CW/CCW
HP
1 1/2
NEMA Design
B
Includes
(1) T-Drain Valve and (1) Plug and T-Drain
No. of Speeds
1
Ins. Class
F
Nominal Efficiency
81 %
Max. Ambient Temp.
40 °C
RPM Range
1,701-1,800
Motor Application
Washdown
Shaft Dia.
5/8 in
Motor Bearings
Ball
Standards
CSA Certified, UL Recognized (E37403)
Motor Efficiency Group
Energy Efficient
Usable @ 208V
Yes
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Product Description
Stainless steel washdown AC motors have exterior components of 300 series stainless steel to provide maximum corrosion resistance in severe-duty and washdown environments. The motors’ exterior is completely paint- and coating-free and sealed against moisture and condensation to protect internal components.
