HUBBELL WIRING DEVICE-KELLEMS

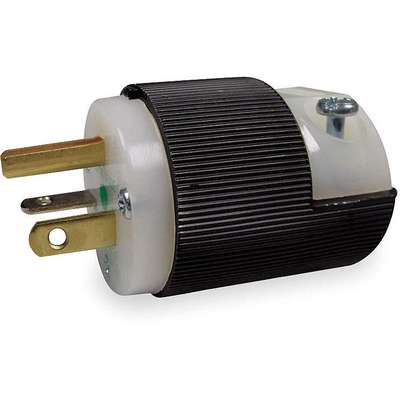

Hubbell Wiring Device-Kellems 20A Hospital Grade Straight Blade Plug, Black/White; NEMA Configuration: 5-20P
Hover over image to magnify
#923106 | Pkg Qty: 1
$38.26 pkg | $38.26 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
20 A
Maximum Wire Size
10 AWG
Antimicrobial
No
Mfr. Part Number
HBL8315C
Body Length
1.97 in.
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Color Family
Black / White
NEMA Configuration - Plugs & Connectors
5-20
Connection Orientation
Straight
Number of Blades
3
Cord Size
0.230 in. to 0.720 in.
Number of Poles
2
Corrosion Resistant
Yes
Number of Wires
3
Current Rating
20 A
Outside Diameter
1.53 in.
Description
Insulgrip, Grounding
Package Quantity
1
Grade
Hospital Grade
Phase
Single
Grounding
Grounded
Polarized
Yes
Horsepower
1 hp
Shipping Weight
.01 lb.
Housing Material
Nylon
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, UL 498 File E2186
IP Rating
IP20
Sub-Category
Plugs
Insulation Material
Nylon
UL 94 Flammability Rating
HB
Item
Straight Blade Plug
Voltage
125V AC
Material
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
Amps - Plugs and Receptacles
20 A
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Grade - Plugs and Receptacles
Hospital
Phase - Plugs and Receptacles
1
HP
1.0
Voltage - Plugs and Receptacles
125V AC
Housing Material Finish
Nickel Plated
Product Description
NEMA Straight-Blade Plugs and Connectors
- CSA Certified.
- Hospital-Grade
- Designed to withstand the chemical and physical abuse that is prevalent in health-care facilities. Nickel-plated contacts and stainless steel hardware provide maximum corrosion resistance.
Expertly Selected Product Pairings
Item Barcode
Plug,5-20P,20A,125V
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5Z868 | Plug,5-20P, 20A,125V |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug,5-20P, 20A,125V |
