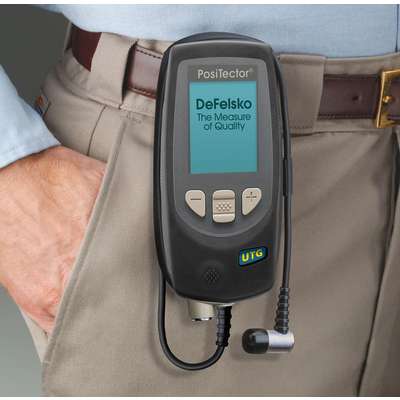

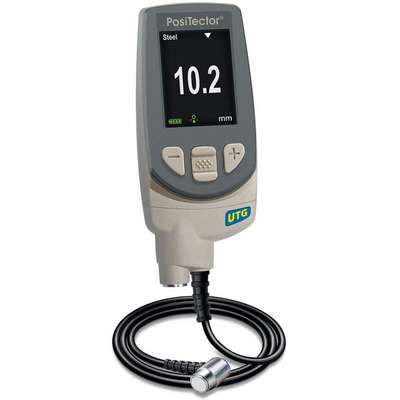

Defelsko Ultrasonic Thickness Gauge: NIST, Steel, 0.100 to 5.0 in (2.5 to 125mm), USB + IR Printing

Name: Defelsko Ultrasonic Thickness Gauge: NIST, Steel, 0.100 to 5.0 in (2.5 to 125mm), USB + IR Printing
Brand: DEFELSKO
SKU: 9230869
Price: 2062.31 USD
Availability: InStock

Hover over image to magnify

#923086-9 | Pkg Qty: 1

$2,062.31 pkg | $2,062.31 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Accuracy

+/-0.001 in., +/-0.01 mm

Item

Ultrasonic Thickness Gauge

Base Material

Steel

Mfr. Part Number

POSITECTOR UTG M1

Brand

DEFELSKO

Package Quantity

Calibration Certificate

NIST

Shipping Weight

1.8 lb.

General

Application

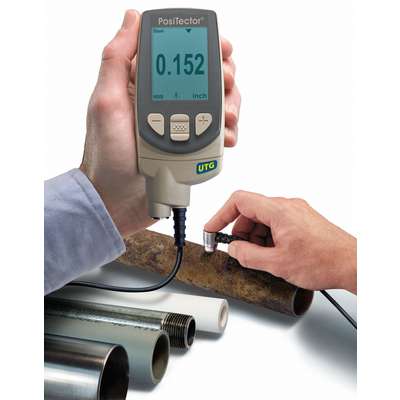

Measure the Metal Thickness of a Painted Structure Without Having to Remove the Coating, Works on Ferrous and NonFerrous Materials

Measurement Rate

3 readings/sec

Data Storage

Yes

Recording Capacity

250

Frequency (MHz)

Resolution (In./mm)

0.001/ 0.01

Includes

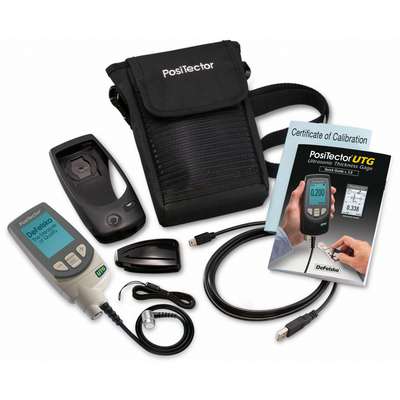

3 AAA Batteries, Couplant, Nylon Carrying Case with Shoulder Strap and Instructions, Protective Rubber Holster with Belt Clip

Standards

ASTM E797

Interface

USB + IR Printing

Velocity Ranges

0.0492 to 0.393 in/usec, 1250 to 10,000 mps

Product Description

Ultrasonic Thickness Gauge, Base Material Steel, Measuring Range 0.100 to 5.0 in (2.5 to 125mm), Accuracy +/-0.001 in, +/-0.01mm, Resolution (In./mm) 0.001/ 0.01, Velocity Ranges 0.0492 to 0.393 in/usec, 1250 to 10,000 mps, Measurement Rate 3 readings/sec, Frequency (MHz) 5, Data Storage Yes, Interface USB + IR Printing, Recording Capacity 250, Cord Length 3 ft / 0.9 m
