Head Press Fit Drill Bushing, 0.194", I.D. 3/8", O.D., #10: Drill Size

Hover over image to magnify

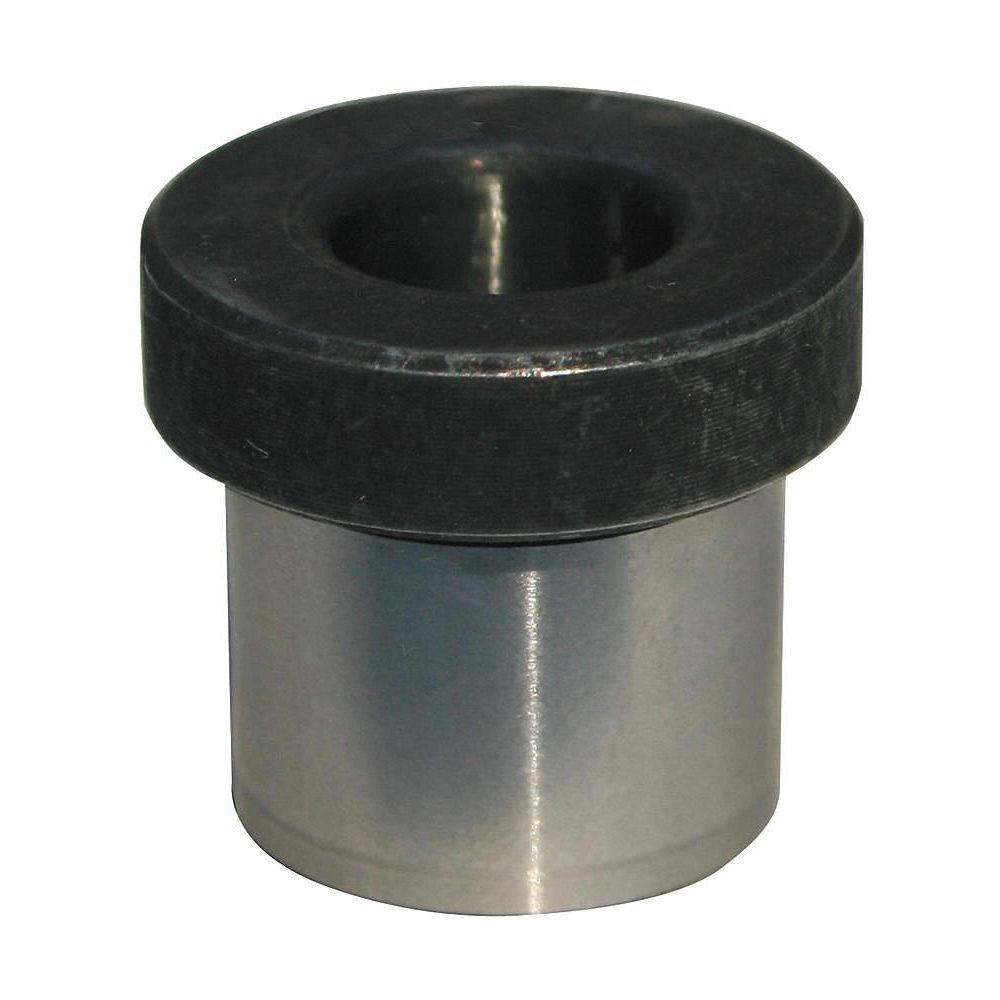

Drill Bushing,H,Drill Size # 10
Drill Bushing,H,Drill Size # 10
Double tap image to magnify
Drill Bushing,H,Drill Size # 10
Drill Bushing,H,Drill Size # 10

#923040-7Pkg Qty: 1

$10.91 pkg | $10.91 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Apr 11.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>Wire size headed (H) press-fit drill bushings come in standard sizes that correspond to American Wire Gauge (AWG) sizes. The larger the wire size, the smaller the bushing. Thin-wall headed press-fit drill bushings save space and can be placed closer together than standard-wall headed press-fit drill bushings.</p>

Wire size headed (H) press-fit drill bushings come in standard sizes that correspond to American Wire Gauge (AWG) sizes. The larger the wire size, the smaller the bushing. Thin-wall headed press-fit drill bushings save space and can be placed closer together than standard-wall headed press-fit drill bushings.

Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Headed Press-Fit Drill Bushing (H)
Bushing Type
Head Press Fit
Material
52100 Thru Hardened
Concentricity Tolerance
.0003 in. T.I.R. Max
Mfr. Part Number
HT245FX
Decimal Equivalent
0.1935
Outside Diameter
3/8 in.
Drill Size
#10
Outside Diameter Tolerance
+0.0016 in. /+0.0013 in.
Hardness
RC 62-64
Overall Length
5/16 in.
Head Material
High Speed Steel
Pack Quantity
1
Head Thickness
3/32 in.
Rockwell Hardness
RC 62-64
Inside Diameter
#10
Shipping Weight
0.01 lb.
Inside Diameter Tolerance
+0.0001 in. /+0.0004 in.
General
Bushing Code
H
Heat Treatment
Through Hardened
Bushing Head Type
Headed
Material - Machining
High Speed Steel
Drill Bushing Wall Type
Thin Wall
Measurement System
Wire
Head Dia.
1/2 in
Size - Decimal
1-7/64 in - 1.1094
Head Type
Yes

Product Description

Wire size headed (H) press-fit drill bushings come in standard sizes that correspond to American Wire Gauge (AWG) sizes. The larger the wire size, the smaller the bushing. Thin-wall headed press-fit drill bushings save space and can be placed closer together than standard-wall headed press-fit drill bushings.

Item Barcode

9230407
Drill Bushing,H,Drill Size # 10
