OASE

Fountain Pump: 120V AC, 1/64 hp HP, 2.8 ft Max. Head, 6 ft Cord Lg

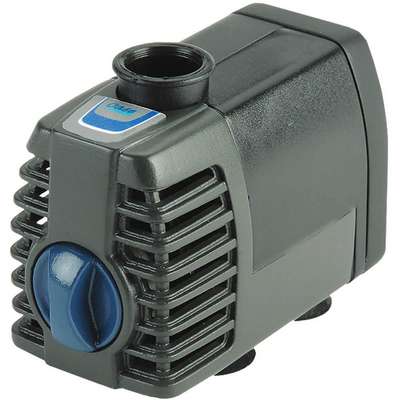

Hover over image to magnify
Fountain Pump,1/64 Hp,120V,2.8
Fountain Pump,1/64 Hp,120V,2.8

#922960-1 | Pkg Qty: 1

$36.88 pkg | $36.88 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
cULus
Item
Fountain Pump
Amps
0.05 A
Length
2-7/8 in.
Bearing Type
Ball
Maximum Head
2.8 ft.
Brand
OASE
Maximum Liquid Temperature
90°F
Cord Size
18
Maximum Specific Gravity
1
Cord Type
SJTW
Mfr. Part Number
45417
Duty
Continuous
Mfr. Warranty Length
3 yr.
Frame
Plastic
Motor Enclosure
Epoxy
Full Load Amps
0.6
Motor Type
Synchronous
GPH of Water @ 1 Ft. of Head
65
Outlet
3/8 in., 1/2 in.
Height
2-1/4 in.
Package Quantity
1
Horsepower
1/64
Shipping Weight
.2 lb.
Housing Material
ABS
Thermal Protection
Yes
Hz
60
Voltage
120 VAC
Impeller Material
ABS
Wetted Materials
All
Impeller Type
Blade
Width
1-1/2 in.
Inlet
3/8 in.
General
Electrical Connection Type
Plug-In
Motor Frame Designation
Plastic
Features
Flow Control, Low Energy, Quiet Operation, Grounding Plate
Nameplate Voltage
120V AC
Includes
3/8 in, 1/2 in Hose Adaptors, 6 ft Power Cord
Overload Protection
No
Installation Position
Vertical
Pump Mounting Orientation
Submersible
Manufacturer Warranty Length
2 yr
Solid Diameter (Maximum)
0.06 in
Maximum Feet of Head
2.8 ft
Specific Gravity (Maximum)
1
Maximum Media Temperature
90 Degrees F
Spray Height (Maximum)
2.8 ft
Minimum Depth Required
3 in
Thermal Overload Protection
Yes

Product Description

Fountain Pump, 1/64 hp HP, Voltage 120V AC, Max. Head 2.8 ft, Length 2 7/8 in, Height 2 1/4 in, Width 1 1/2 in, Cord Length 6 ft, Continuous Duty, Features Flow Control, Low Energy, Quiet Operation, Grounding Plate, Full Load Amps 0.6 A, GPH of Water @ 1 Ft. of Head 65, 60 Hz, Impeller Material ABS, Installation Position Vertical, Motor Type Synchronous, Overload Protection No, Includes 3/8 in , 1/2 in Hose Adaptors, 6 ft Power Cord

Item Barcode
9229601
