DAYTON

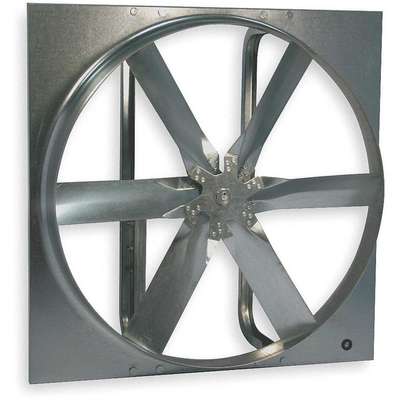

Dayton 48" Dia., Exhaust Fan with Drive Package, 115/208-230VACV, Open Dripproof

Hover over image to magnify
Std Duty Fan,27,474 Cfm,115/
PI_Asset_928603
Std Duty Fan,27,474 Cfm,115/
PI_Asset_928603
Dayton 48" Dia., Exhaust Fan with Drive Package, 115/208-230VACV, Open Dripproof Video

#922953-8 | Pkg Qty: 1

$2,180.27 pkg | $2,180.27 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
AMCA
Motor HP
2
Assembled/Unassembled
Unassembled
Motor Type
Capacitor-Start
Bearing Type
Regreasable Pillow Block
Mounting Position
Horizontal or Vertical
Blade Diameter
48 in.
Number of Blades
6
Blade Material
Galvanized Steel
Package Quantity
1
Brand
DAYTON
Phase
1
Height
54 in.
Shaft Diameter
1-1/4 in.
Item
Standard Duty Exhaust Fan with Motor and Drive Package
Shipping Weight
274.64 lb.
Mfr. Part Number
7CF43
Voltage
115/208-230
Motor Enclosure
Open Dripproof
Width
54 in.
General
Assembled
Unassembled
Maximum Exhaust Airflow @ 0.000 in SP
20,001 to 30,000 cfm
Bearing Size
1 1/4 in
Maximum Inlet Temperature
104 Degrees F
Blade Finish
Galvanized
Maximum Noise Level
25 sones
Enclosure Design
Open Dripproof Motor
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 50 sones
Exhaust Airflow @ 0.000 in SP
27,474 cfm
Motor Enclosure Design
Open Dripproof (ODP)
Exhaust Airflow @ 0.125 in SP
25,206 cfm
Motor Horsepower
2 hp
Exhaust Airflow @ 0.250 in SP
22,529 cfm
Motor Speed
1,725 RPM
Exhaust Airflow @ 0.375 in SP
18,065 cfm
Motor Speed Range
1601 to 1800 RPM
Fan Style
Panel
Nameplate Voltage
115/208-230V AC
Fan Voltage
115/208-230V AC
Noise Level @ 0.000 in SP @ 5 ft
25 sones
Flange Depth
2 in
Noise Level @ 0.125 in SP @ 5 ft
25 sones
For Cut-Out Height
50 1/2 in
Nominal Voltage
115/208-230V AC
For Cut-Out Length
50 1/2 in
Number of Fans
1
For Cut-Out Width
50 1/2 in
Square Opening Required
Greater than 30 in
Full Load Current
20.2 A
Vent Design
Ductless
Includes
Drive Package
Ventilation Type
Exhaust
Includes Motor
Yes
Venturi Depth
7 in
Manufacturer Warranty Length
1 yr
Venturi Diameter
48 1/2 in
Maximum Airflow
27,474 cfm

Product Description

Dayton® standard-duty belt-drive 48" exhaust fan is designed to be used in commercial applications that require high volumes of air at low static pressures. The fan features a 6-blade galvanized-steel propeller, rigid drive-frame rails, and a 1-pc. motor/bearing plate. Variable pitch and adjustable motor pulley optimize fan performance. Comes complete with a drive package, which includes the appropriate motor, belt, bushings and sheaves (all packed separately) to obtain the rated performance. Mount fan vertically for exhaust operation; horizontally for supply.

  •  Air handling-quality bearings meet a minimum of L10-100,000 hr.
  • UL and C-UL Listed
  •  Unassembled

Note: OSHA complying guards are required when a fan is installed within 8 ft. of floor, working level, or within reach of personnel; order No. 1WBU7. Review OSHA codes and UL standards.
