DAYTON

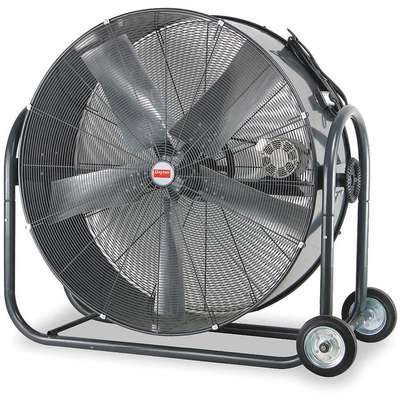

Dayton Standard-Duty Industrial Fan: Std-Duty Industrial Fan, 36 in Blade Dia, 2 Speeds, 120 V AC

Hover over image to magnify
Air Circulator,36 In,14,000
Air Circulator,36 In,14,000

#922929-5 | Pkg Qty: 1

$776.55 pkg | $776.55 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Circulator Height
42 in.
Motor RPM
1100/800
Air Flow
9,000/14,000 cfm
Motor Type
Permanent Split Capacitor
Assembled/Unassembled
Partially Assembled
Mounting Location
Floor
Bearing Type
Ball
NEMA Plug Configuration
5-15P
Blade Diameter
36 in.
Number of Blades
5
Blade Material
Aluminum
Number of Conductors
3
Brand
DAYTON
Oscillating
No
Cord Length
9 ft.
Outside Diameter
38 in.
Drive Type
Belt Drive
Package Quantity
1
Duty
Standard Duty
Phase
1
Guard Material
Steel
Shaft Diameter
25 mm
Hz
60 Hz
Shipping Weight
155 lb.
Item
Industrial Fan
Sound Level
76 dBA
Mfr. Part Number
1YNW7
Standards
cULus Listed
Mobile/Stationary
Mobile
Thermal Protection
Automatic
Motor Enclosure
Open Air Over
Voltage
120V AC
Motor HP
1
Watts
900/600
Motor Insulation
Class B
Width
46 in.
General
Air Velocity @ 20 Ft.
230/140 fpm
Fan Mounting Location
Floor
Air Velocity @ 40 Ft.
130/40 fpm
Head Tilt Adjustment
360 Degrees
Air Velocity @ 60 Ft.
60/40 fpm
Includes
7 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Application
Spot Cooling and People Cooling
Max. Ambient Temp.
104 Degrees F
Assembly Required
Yes
Wheel Dia.
7 in
Environmental Applications
Industrial
Wheeled Base
Mobile
Fan Cord Length
9 ft
Wire Guard Finish
Polyester Powder Coated Dark Gray
Fan Housing Material
Steel

Product Description

Standard-duty industrial mobile and stationary floor fans cool heavy manufacturing areas and other dusty or dirty environments. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor, and feature more-robust motor bearings for a longer life.

Industrial mobile and stationary floor fans sit close to the ground to resist tipping over, even when bumped, while providing a powerful stream of air at floor level. These air circulators are often used for spot cooling workstations or production lines and for general cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact. Mobile floor fans have wheels, so they can be rolled from one location to another as cooling needs change. Stationary floor fans are used in applications where fans don't need to be frequently relocated, but they are generally light enough to carry between locations.
