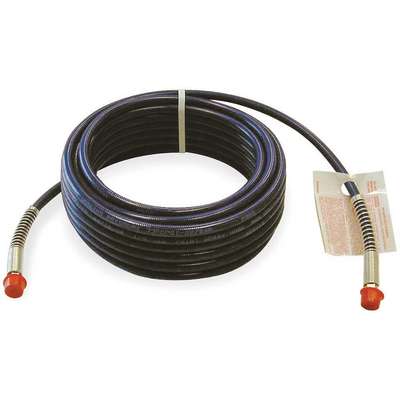

Airless Paint Spray Hose, 1/4" Hose Inside Dia., 50 ft, 3,000 PSI, -40 to 200F

Hover over image to magnify
Paint Spray Hose,1/4 IDx0.5 In
Paint Spray Hose,1/4 IDx0.5 In

#922927-5 | Pkg Qty: 1

$137.33 pkg | $137.33 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
1AGF1
Color Family
Blue
Pack Quantity
1
Item
Airless Paint Spray Hose
Shipping Weight
4 lb.
General
Compatible Chemicals
Antifreeze (Coolant), Paint, Paint Thinner
Hose Tube Material
Nylon
For Media Type
Antifreeze, Paint, Paint Thinner
Max. Working Pressure @ 70 F
3,000 psi
Hose Configuration
Coupled Assembly
Not Recommended Chemicals
0, Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Antifreeze (Coolant), Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Ethyl (Ethanol), Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%)
Hose Cover Material
Polyurethane
Safety Factor
1899-12-31 04:01:00
Hose Inside Dia.
1/4 in
Temp. Range
-40 Degrees to 200 Degrees F

Product Description

Geib paint spray hoses have a nylon 11 tube that provides good chemical resistance, a polyurethane cover that has excellent abrasion resistance and good chemical resistance, and dual polyester braid reinforcement for strength. These hoses resist kinking and can withstand exposure to most chemicals, paints, and solvents. They are used as airless paint spray hoses. These hoses are certified to meet UL-1450 standards for painting equipment. They are used with airless paint spray equipment.

Paint spray hoses are used for spraying paints, solvents, lacquers, thinners, and chemicals. Also called paint sprayer hoses, these hose assemblies have fittings on both ends of the hose for connecting to airless and/or pneumatic paint spray equipment.
