AIR HANDLER

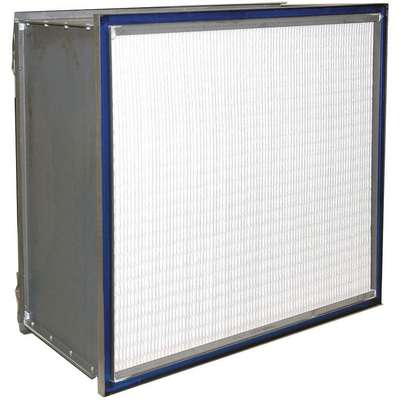

Air Handler HEPA Air Filter: 24 in x 24 in x 11 1/2 in Actual Filter Size, 1,200 cfm Air Flow @ 300 fpm, HEPA

Hover over image to magnify
Microfiber Hepa Air Filter,
Microfiber Hepa Air Filter,

#922917-9 | Pkg Qty: 1

$521.10 pkg | $521.10 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Actual Depth
11-1/2 in.
Maximum Temperature
200 deg. F
Actual Height
24 in.
Mfr. Part Number
6B619
Actual Width
24 in.
Nominal Depth
11-1/2 in.
Air Flow
1900 cfm
Nominal Height
24 in.
Brand
AIR HANDLER
Nominal Width
24 in.
Filter Efficiency
95.00%
Package Quantity
1
Item
Microfiber HEPA Air Filter
Shipping Weight
40.15 lb.
General
Actual Filter Size
24 in x 24 in x 11 1/2 in
Gasket Location
Downstream Face
Air Filter Frame Style
Box
Media Material
Microglass
Application
For Use in Controlled Environment Areas, Clean Rooms, Hospital Operating Suites, Electronics Manufacturing and Pharmaceutical Production
Media Separator Construction
Aluminum
Common Applications
General Use
Nominal Filter Size
24x24x12
Faceguard Location
No Faceguard
Performance Rating
HEPA
Filter Efficiency - Air Filters
0.95
Standards
UL 900
Frame or Header Material
Galvanized Steel
Style - Air Filters
Box

Product Description

95% DOP HEPA-grade air filters capture airborne contaminants more efficiently than standard non-HEPA air filters but are less efficient than other types of HEPA air filters. They are suitable for applications where HEPA-filtered air is not required. Using the DOP test method, these filters are rated as removing particles as small as 0.30 microns with 95% efficiency.

HEPA and ULPA air filters are installed in HVAC systems to remove the maximum amount of contaminants from the air stream for applications that require very clean air. This maximizes indoor air quality and keeps the contaminants from building up in the equipment and damaging it. HEPA and ULPA filters provide more effective filtration than other styles of air filters and are commonly used in areas that require very high levels of contamination control, such as clean rooms, hospitals, pharmaceutical facilities, data centers, laboratories, and food processing plants. They have a box construction.

Item Barcode
9229179
Microfiber Hepa Air Filter,
 NameItemDescription
Grainger DropshipGrainger Dropship6B619Microfiber HEPA Air
UNSPSC CODESUNSPSC CODES40161505
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Microfiber HEPA Air
