AMFLO

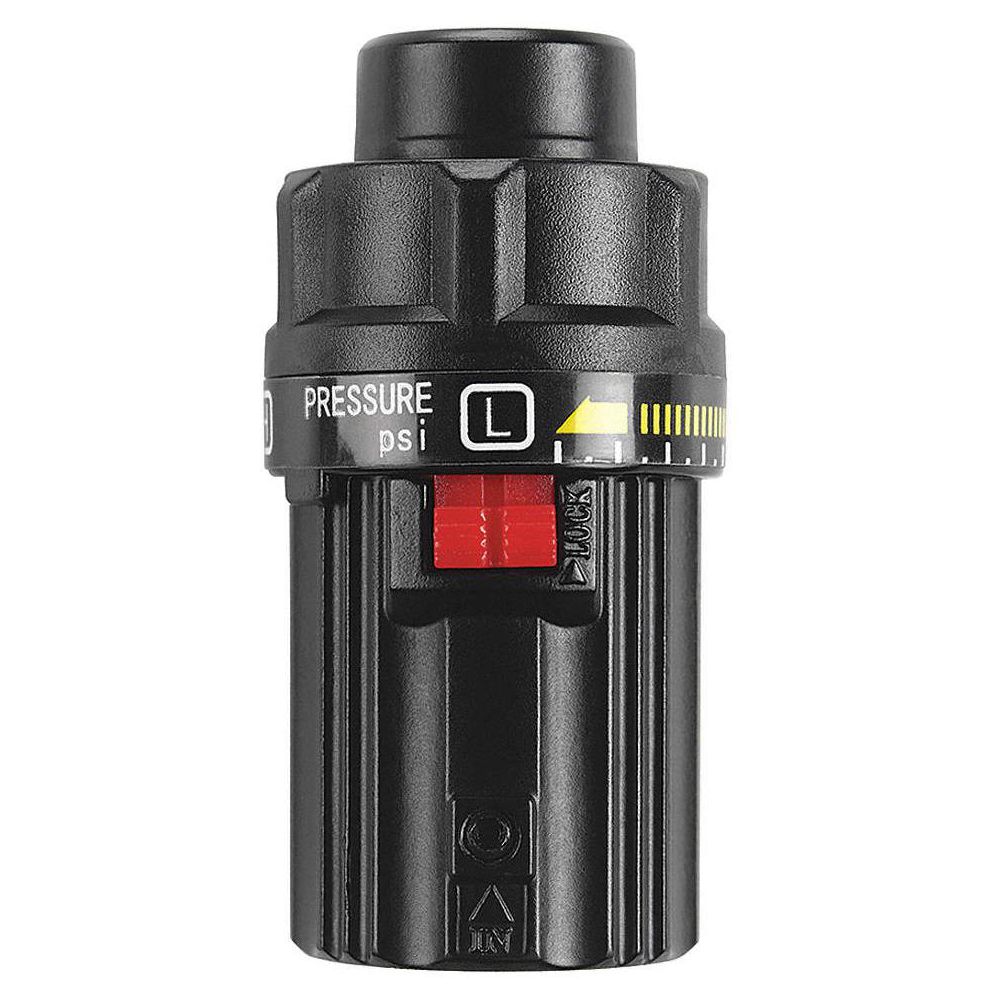

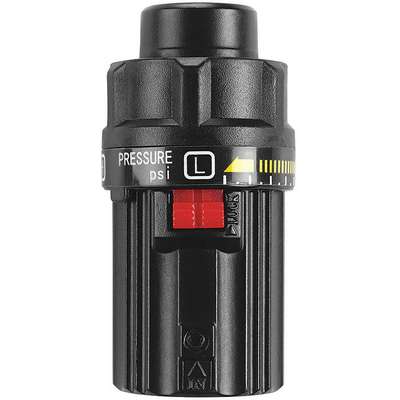

In-Line Compressed Air Regulator: 1/4 in, NPT, 25 cfm, 400 psi Max Op Pressure, 175°F Max Op Temp
Hover over image to magnify
#922905-3 | Pkg Qty: 1
$37.99 pkg | $37.99 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adjustment
40 to 140 psi
Maximum Temperature
175 deg. F
Adjustment Knob
Round
Mfr. Part Number
41145
Air Consumption
scfm
Overall Height
2-1/2 in.
Body Material
Aluminum, Steel, Plastic
Overall Length
1-1/4 in.
Brand
AMFLO
Overall Width
1-1/4 in.
Item
General Purpose Air Regulator
Package Quantity
1
Maximum Flow
25 cfm
Pipe Size
1/4 in.
Maximum Inlet Pressure
400 psi
Shipping Weight
.19 lb.
Maximum Pressure
400 psi
Valve Design
Air Adjusting
General
Adjustment Mechanism
Knob
Max. Flow - Regulators
25 cfm
Adjustment Range
40 to 140 psi
Max. Inlet Pressure - Regulators
400 psi
Adjustment Range - Regulators
40 to 140 psi
Maximum Regulated Pressure
140 psi
Air Inlet Type
NPT
Minimum Regulated Pressure
40 psi
Air Outlet Size
1/4 in
Overall Height - Regulators
2.5 in
Air Outlet Type
NPT
Overall Width - Regulators
1.25 in
Compressed Air Regulator Product Grouping
General Purpose Air Regulator
Pipe Size - Regulators
1/4 in
For Fluid Type
Air
Pressure Gauge Port Size
1/4 in
For Substance Type
Air
Pressure Gauge Port Type
NPT
Gauge Port
1/4 in NPT
Product Description
This compact and lightweight regulator connects directly to the tool and allows you to easily adjust the air pressure. Just turn to select your desired air pressure and then lock in place. No need to go back to the air compressor when you need to make a pressure adjustment.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Air Regulator,25 Cfm,400 PSI
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 33KL52 | Air Regulator,25 |
 | UNSPSC CODES | 27131603 | |
 | VMRS (ATA) CODES | 053-006-009 | Air Regulator,25 |
