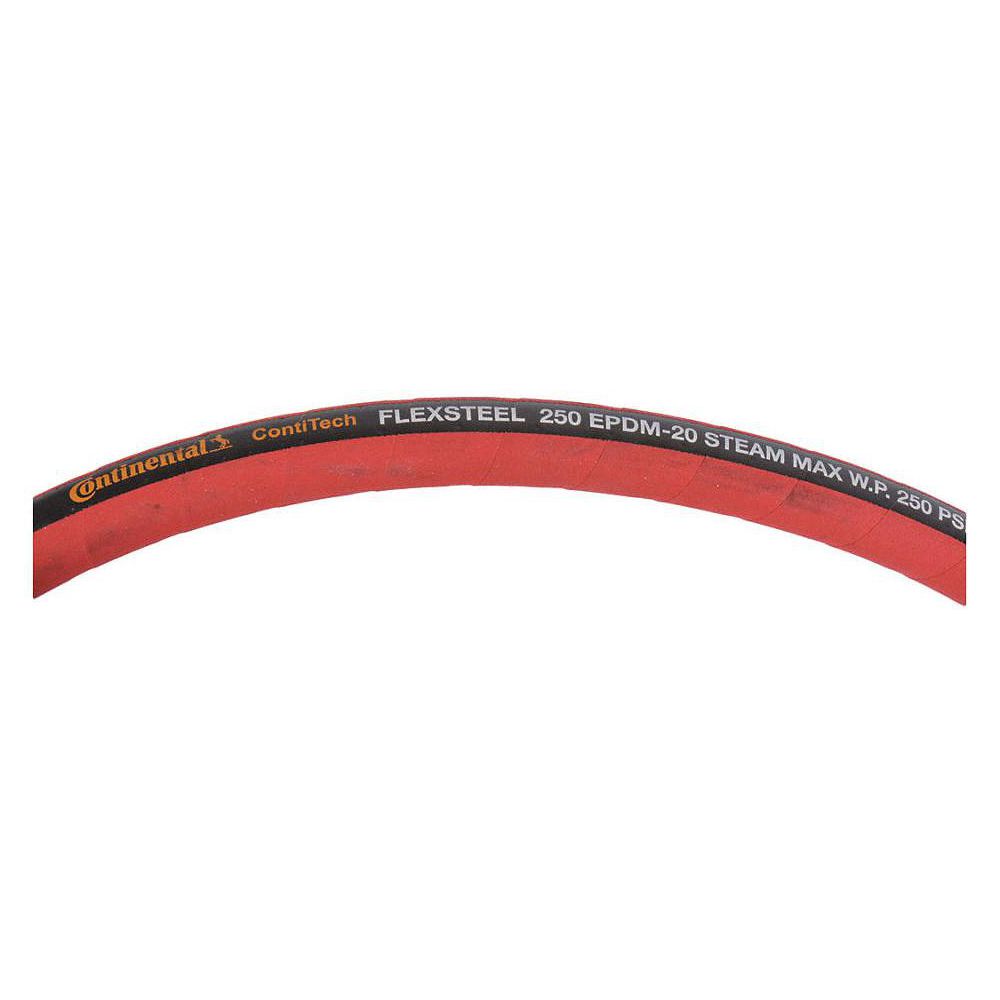

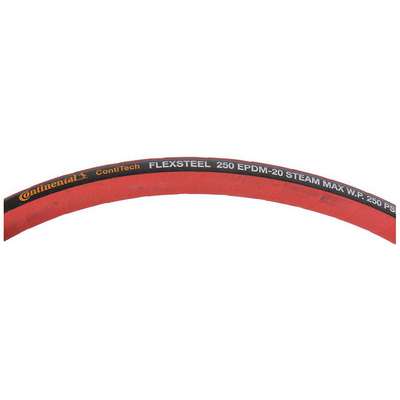

50 ft. Red Bulk Steam Hose; Temp. Range - Steam Hose: -40° to 450°F, 1-1/2" Inside Dia. - Steam Hose

Hover over image to magnify
Steam Hose,1-1/2 In.,50 Ft.,
Steam Hose,1-1/2 In.,50 Ft.,

#922897-7 | Pkg Qty: 1

$1,862.41 pkg | $1,862.41 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Steam Hose
Color Family
Red
Mfr. Part Number
20620048
Hose Inside Diameter
1-1/2 in.
Package Quantity
1
Hose Length
50 ft.
Shipping Weight
85 lb.
Hose Material
EPDM
Temperature Range
-40 deg. F to 450 deg. F
General
For Media Type
Acetic Acid, Air, Bleach, Calcium Chloride, Carbon Dioxide, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Glycerin, Isopropanol, Ketones, Methanol, Nitrogen Gas, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Solvents, Steam, Sulfuric Acid, Water
Max. Working Pressure @ 70 F
250 psi
Hose Configuration
Bulk Hose
Not Recommended Chemicals
Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (37%), Hydrogen Peroxide, Kerosene, Liquid Propane, LP Gas, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Natural Gas, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Oxygen, Parrafins (Wax), Potassium Hydroxide (50%), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
Hose Cover Material
EPDM
Safety Factor
1899-12-31 10:01:00
Hose Inside Dia.
1 1/2 in
Temp. Range
-40 Degrees to 450 Degrees F
Hose Tube Material
EPDM

Product Description

These bulk steam hoses have an EPDM (ethylene propylene diene monomer) tube and cover that provide excellent resistance to ozone, good resistance to high temperatures and chemicals, and poor resistance to petroleum fluids.

Bulk steam hoses are used to create custom hoses for conveying pressurized hot water in steam-cleaning, steam-pumping, heat-control, fire-prevention, thawing, blow-out service, and hoisting applications. They are designed to withstand high temperatures and pressures and are used in harsh environments like steel mills, refineries, shipyards, foundries, and chemical plants. The hoses have a pinpricked cover that allows gases or vapors trapped in the hose carcass to escape so they don't create a blister in the cover of the hose. Bulk hoses can be cut to the desired length, and compatible fittings can be added on the ends of the hoses to connect them to equipment.
