DAYTON

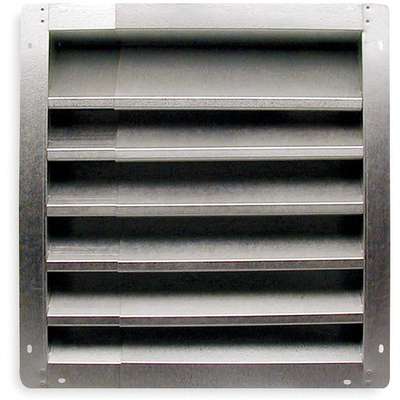

Dayton Stationary Intake Louver, 14H x 12W Min. Wall Opening, 875 cfm Louver Max. Exhaust
Hover over image to magnify
#922843-4 | Pkg Qty: 1
$129.66 pkg | $129.66 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DAYTON
Outside Height
18 in.
Item
Stationary Intake Louver
Outside Width
22 in.
Material
G90 Galvanized Steel
Package Quantity
1
Mfr. Part Number
4F421
Shipping Weight
11.1 lb.
Number of Blades
1
General
Blade Angle (Deg.)
45
Louver Max. Exhaust
875 cfm
Flange Width (In.)
2 in
Louver Max. Intake
616 cfm
For Use With
Intake or Exhaust Applications
Louver Type
Adjustable Width, Fixed Height
Includes
Bird Screen and Screen Fasteners
Max. Velocity (FPM)
3,000 fpm
Inside Height (In.)
14 in
Min. Wall Opening (In.)
14H x 12W
Intake Louver Inside Width
12 in to 18 in
Mounting Hole Size (In.)
9/32 x 1/2
Louver Free Area
0.360 to 0.550 sq ft
Outside Width (In.)
16 to 22
Product Description
Tabbed louver blades are set at a 45° angle and lock into the frame for a clean appearance. Includes bird screen and fasteners. Free area: 0.360 to 0.550 sq. ft. Frame depth: 4".
Item Barcode
Louver,Intake,12-18 In,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4F421 | Louver, Intake,12-18 |
 | UNSPSC CODES | 40101503 | |
 | VMRS (ATA) CODES | 053-006-009 | Louver, Intake,12-18 |
